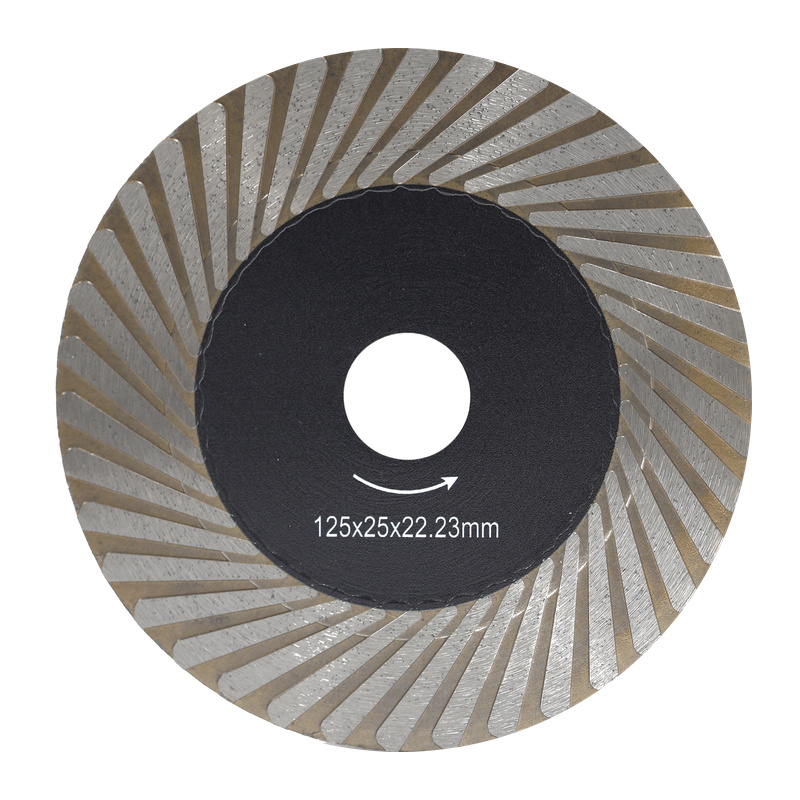

Spiral Wind Tooth Diamond Cut and Grind Blade
Model: DSB-115125-S-T-SW
Product Type: Double-sided hot-pressed diamond cutting and grinding blade with swept spiral wind-tooth pattern.
Available Sizes: 115 mm and 125 mm.
Bore: 22.23 mm.
Working Layer Thickness: 1.6 mm.
Working Layer Height: 25 mm.
Blade Shape and Function: Angled turbine-style diamond teeth form spiral airflow paths across the wide working layer. The swept geometry directs dust and slurry away from the contact zone, improves cooling and provides a smooth transition from cutting to edge grinding.
Applications: Ceramic tile, porcelain, gres, Dekton-type sintered stone, marble, quartz and engineered stone.
Recommended Operations: Straight cutting, 45° mitre cutting, chamfering, edge correction and light surface grinding with a standard angle grinder. Suitable for dry or wet operation; wet use improves cooling and dust control.
Advantages:
• Spiral wind teeth improve airflow and debris evacuation
• Fast cutting with controlled edge quality
• Wide double-sided working area for beveling and grinding
• 1.6 mm thickness and 25 mm working height
• Available in 115 mm and 125 mm
Confirm maximum RPM and machine compatibility before use.
