ZS-DCW125-CY6
ZHOUSHI
6804219000
· Sweeping segment geometry supports aggressive, continuous material removal.
· Open slots help move grinding dust away from the contact area.
· Six balanced segment groups provide a practical mix of speed and control.
· Suitable for concrete leveling, high-spot removal and coarse surface preparation.
· Custom bond, segment height, color, bore and private-label packaging are available subject to order requirements.
Item | Specification / Recommendation |
Outer Diameter | 125mm / 5 inch |
Bore | 22.23mm (confirm against production drawing) |
Segment Design | 6 sweeping / cyclone segment groups |
Recommended Machine | Compatible angle grinder or concrete hand grinder with correct flange, guard and dust shroud |
Working Method | Dry grinding with dust extraction; wet use only after the exact production version is confirmed suitable |
Target Finish | Coarse to medium surface preparation |
OEM Options | Bond, grit, segment height, body color, laser marking and packaging—subject to confirmation |
Maximum Speed | Follow the permanent marking on the delivered wheel; never exceed the wheel-rated speed |
Item | Specification / Recommendation |
Recommended | Concrete slabs, screed, masonry surfaces; high spots and laitance |
Not Recommended / Select Another Tool | Thick elastic coatings or heavy epoxy—use a PCD removal wheel instead. |

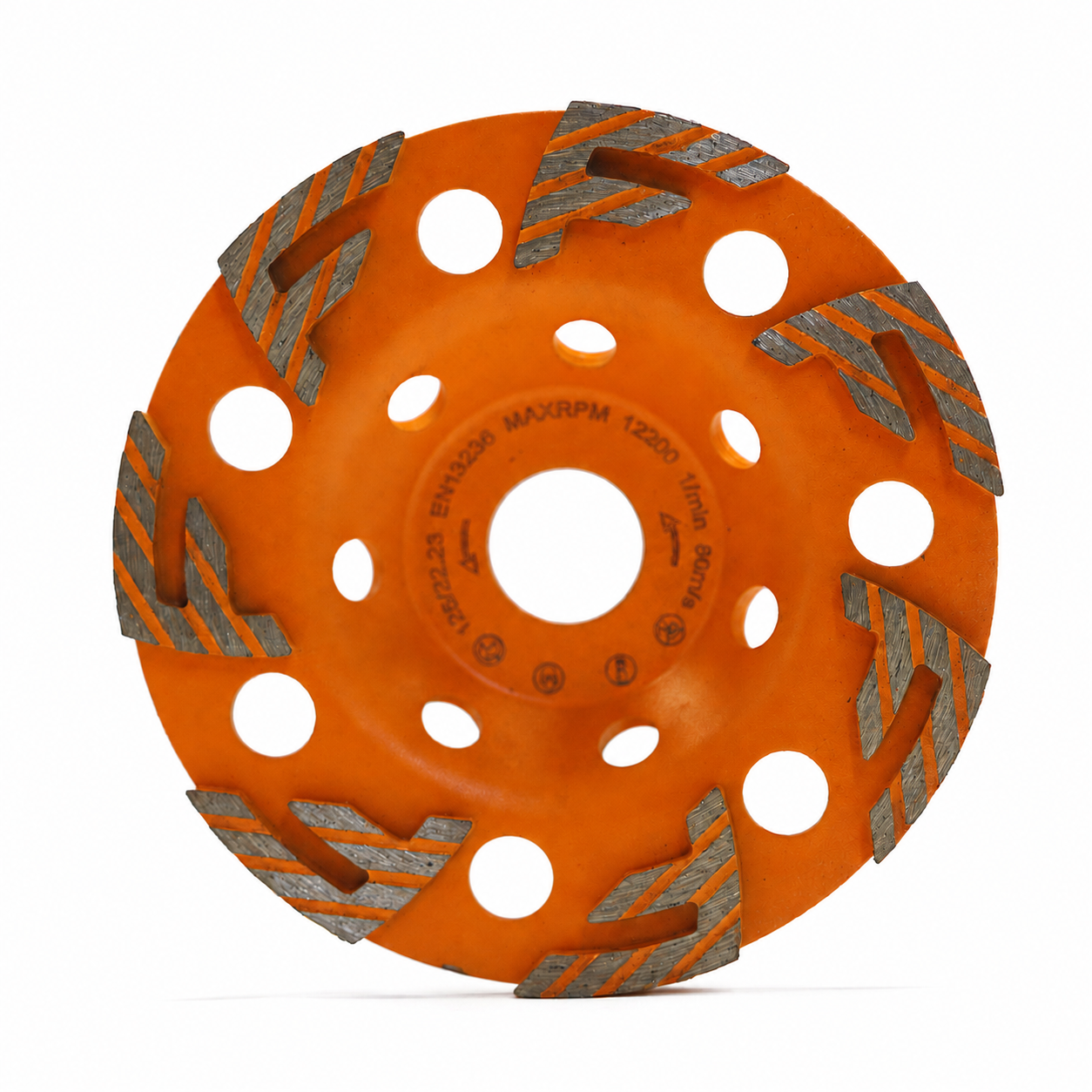

This 125mm cyclone sweeping segment diamond cup wheel is developed for fast concrete leveling and general masonry surface preparation. The angled sweeping arrangement keeps multiple diamond segments engaged while leaving open paths for dust evacuation. This makes the wheel suitable for removing high spots, surface laitance and uneven areas before coating, tiling or further polishing.
Use the wheel on a compatible angle grinder with the correct guard and a dust-extraction shroud. Keep the tool moving in overlapping passes and avoid holding the wheel in one position. Bond hardness, diamond grit and segment height can be adjusted for different concrete hardness and target finish. OEM laser marking, color and packaging are available.
· Confirm the wheel bore, grinder flange, maximum speed and rotation direction before mounting.
· Use the correct guard, safety glasses, hearing protection and a dust-extraction shroud connected to a suitable vacuum.
· Start with light to moderate pressure. Keep the wheel flat and move it continuously in overlapping passes.
· Do not force the wheel, grind with a damaged wheel or exceed the speed marked on the product.
· Inspect the wheel and mounting system before each use. Follow the grinder manufacturer’s instructions and local safety requirements.
Please send us your grinding material, machine model, required bore, target finish and expected order quantity. We will recommend the suitable bond and diamond grit for the 125mm cyclone diamond cup wheel and provide OEM marking, color and packaging options.
