Choosing the right diamond cup wheel is crucial for any grinding, polishing, or coating removal project. Whether you're a contractor, a DIY enthusiast, or a professional working in construction or masonry, selecting the proper diamond cup wheel can significantly improve both the speed and quality of your work. The right wheel ensures that the material is worked on efficiently, with minimal effort, and produces a high-quality finish. This guide will walk you through the essential aspects to consider when selecting the diamond cup wheel that's best for your specific needs.

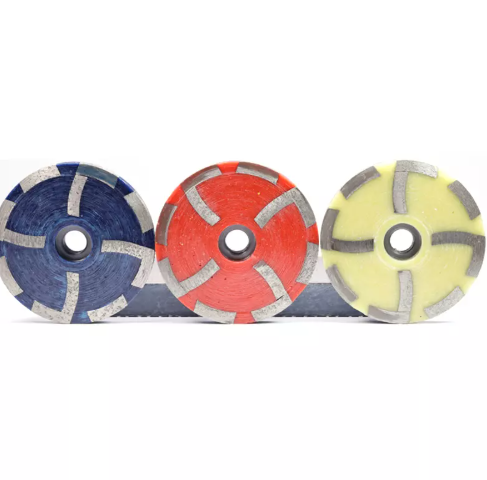

A diamond cup wheel is a specialized grinding tool used primarily for working with hard materials such as concrete, granite, marble, stone, and even some metals. These wheels consist of a metal base or body, and the most important component—the diamond segments. The segments are embedded within the base and are responsible for the grinding process. The diamonds in these segments are extremely hard and are the key to grinding through tough materials efficiently.
Plate (Cup): The foundation of the wheel, often designed in a cup-like shape to house the segments. It may also feature vents to allow cooling during the grinding process. Larger plates (above 175mm in diameter) may require balancing to avoid wobbling during use.
Solder: A high-temperature bonding material that secures the grinding segments to the wheel. This bonding material ensures that the segments stay in place under heavy use, even at high temperatures.
Segments: These are the actual grinding surfaces made from diamond particles that are held in a metal bond. The segments wear down as the grinding work is done, and when they are completely worn, the wheel will no longer be usable.
Diamond cup wheels are typically mounted on an angle grinder or a similar power tool and are used for a variety of tasks, including grinding, shaping, polishing, and surface preparation.
The main reason to choose a diamond cup wheel is its ability to efficiently grind through some of the hardest materials. The durable nature of diamonds, combined with the specific designs of the wheels, makes them ideal for use in surface preparation, concrete grinding, and even fine polishing.
Efficiency: Diamond cup wheels offer a fast and effective way to grind and polish hard surfaces, allowing you to complete tasks quickly.
Durability: These wheels last much longer than traditional grinding tools, making them ideal for heavy-duty applications.
Precision: The diamond segments allow for fine and accurate grinding, especially when dealing with precise materials such as granite or marble.
Versatility: Diamond cup wheels are suitable for a wide range of applications, including removing coatings, leveling surfaces, grinding, and polishing.
When selecting a diamond cup wheel, there are several crucial factors that will affect the performance and results of your work. These include the size, segment type, bond hardness, and grit size, among others. Here's a more in-depth look at each of these factors.
The surface area of the segments on a diamond cup wheel is a critical consideration. Larger surface areas, which are typically associated with more or larger segments, provide smoother, slower grinding. This type of grinding is ideal for softer materials where you want to avoid scratching or gouging. Smaller surface areas, on the other hand, mean that the segments are fewer and thinner, allowing for faster and more aggressive grinding but often resulting in a rougher finish.
When to use a larger surface area:
When working with softer materials where a smoother finish is required.
For larger surfaces where you need a more consistent, even result without unnecessary roughness.
Ideal for grinding larger areas over extended periods.
When to use a smaller surface area:
For tougher materials, like concrete, where you need more aggressive grinding.
When you're dealing with coating removal or rough surface preparation.
For smaller tasks where precision and speed are essential.
The shape of the segments on the diamond cup wheel plays an important role in its overall cutting efficiency. Different shapes offer distinct advantages depending on the task at hand. The sharpness of the edges, whether tapered or angled, influences how the wheel interacts with the material.
Sharp Leading Edges: These segments are best for aggressive grinding. They cut more efficiently and are ideal for removing tough coatings, like adhesives, glues, and paints.
Tapered or Angled Segments: These are designed to leave a smoother finish with minimal scratching, making them suitable for tasks such as leveling and smoothing surfaces.
Zed Segments: Specifically designed for high-speed removal of large quantities of material, often used in tasks like surface preparation or material breakdown.
The bond hardness is what keeps the diamond segments securely in place as the wheel works. As the segments grind, they gradually wear down, exposing new diamond surfaces. The rate at which this happens is influenced by the bond hardness.
Soft Bond: Works best for hard, dense materials like concrete, as it exposes new diamonds quickly. This allows for more aggressive grinding and faster material removal.
Medium Bond: A versatile option suitable for general use across a variety of materials. It offers a good balance between wear and cutting efficiency.
Hard Bond: Best for softer, more abrasive materials such as asphalt or marble, as it slows down the wear rate of the segments, extending the wheel's lifespan.
The grit size of a diamond cup wheel refers to the size of the diamond particles embedded in the segments. Coarser grits are used for aggressive grinding and quick material removal, while finer grits are used for polishing and achieving a smooth finish.
Coarse Grit (16-30): These are ideal for removing large amounts of material quickly. They are typically used for rough grinding or removing thick coatings.
Fine Grit (80-150): These grits are best for polishing and smoothing surfaces. They are ideal for finishing tasks where a smooth, high-quality surface is required.
Use coarse grit for heavy-duty grinding or when working with materials like concrete or stone that need to be broken down quickly.
Switch to fine grit as you move towards the polishing or finishing stage to achieve a smooth, professional-quality finish.
There are several different types of diamond cup wheels, each designed for a specific task. The key differences lie in the bonding material, the design of the segments, and the intended application. Here's an overview of the most common types and what they're best suited for:
Resin bond diamond wheels are highly versatile, providing excellent cutting ability and a smooth finish. They are often used for precision grinding and fine finishes.
Best for:
Polishing and fine grinding of glass, ceramics, and tungsten carbide.
Sharpening cutting tools in industries like aerospace and tool-making.
Metal bond wheels are incredibly durable and ideal for heavy-duty grinding. The metal bond is stronger and holds the diamond particles firmly in place, making them more suitable for rough grinding on hard materials.
Best for:
Grinding concrete, ceramics, and gemstones.
Surface grinding on stone materials, composites, and tough coatings.
Vitrified bond wheels use a glass-based bonding material, offering superior thermal stability and rigidity. These wheels maintain their shape and size over time, which makes them ideal for precision applications.
Best for:
Precision grinding of diamond tools.
Cylindrical grinding for automotive or aerospace components.
Electroplated diamond wheels feature a single layer of diamonds bonded to the wheel by a nickel matrix. These wheels offer aggressive grinding action and are ideal for applications that require high precision.
Best for:
Form grinding for detailed profiles and intricate parts.
Cutting hard and brittle materials such as quartz or ceramics.
When selecting a diamond cup wheel, it's also important to consider whether your grinding task will be done wet or dry. Both methods have specific advantages and applications.
Wet grinding is the preferred method when you need to keep the temperature down and reduce dust. The cooling effect of water helps prevent the wheel from overheating and ensures it lasts longer.
Best for:
Large-scale grinding and concrete polishing.
Surface preparation for coatings or flooring.
Dry grinding is often used when water would be inconvenient or when working with smaller areas. While dry grinding can generate more heat, it's effective for rapid material removal in some cases.
Best for:
Quick grinding in dry conditions.
Working on smaller, precise areas where wet grinding isn't practical.
Proper care and maintenance will prolong the lifespan of your diamond cup wheel and keep it performing at its best.
Check the wheel frequently for any wear or damage. As the diamond segments wear down, their effectiveness decreases. If necessary, use a dressing stone to recondition the wheel and expose fresh diamonds.
Store your diamond cup wheel in a dry, cool place to prevent damage or corrosion. Avoid leaving the wheel in humid or wet environments.
For wet grinding, always use adequate water to keep the wheel cool. This will prevent overheating, which could lead to premature wear or damage.
Choosing the right diamond cup wheel is essential to achieving the desired results for your grinding, polishing, or surface preparation tasks. By considering factors such as segment shape, bond hardness, grit size, and whether the work will be done wet or dry, you can ensure that your diamond cup wheel is well-suited to your specific project. Proper maintenance and storage will also help extend the life of the wheel and maintain its performance.
Now that you understand the key considerations and types of diamond cup wheels, you're ready to choose the one that will work best for your needs. Whether you're grinding concrete, polishing stone, or removing coatings, selecting the right wheel ensures efficiency, precision, and high-quality results.
A: A diamond cup wheel is used for grinding and polishing hard materials like concrete, stone, granite, and marble. It is ideal for tasks such as surface preparation, leveling concrete, removing coatings, and fine polishing.
A: To maintain your diamond cup wheel, regularly inspect it for wear or cracks. Use a dressing stone to expose fresh diamonds when necessary, and always store it in a dry, cool place to prevent corrosion.
A: Wet grinding uses water to cool the wheel, preventing overheating and dust, making it ideal for large-scale grinding and concrete polishing. Dry grinding is faster and suitable for smaller areas but generates more heat and dust.
A: Choose coarse grit (16-30) for aggressive grinding and quick material removal, and fine grit (80-150) for smoother finishes and polishing. The grit size depends on the desired outcome of the project.
A: There are several types, including resin bond, metal bond, vitrified bond, and electroplated diamond wheels. Each type is suited for different materials and tasks, from fine grinding to heavy-duty surface preparation.
