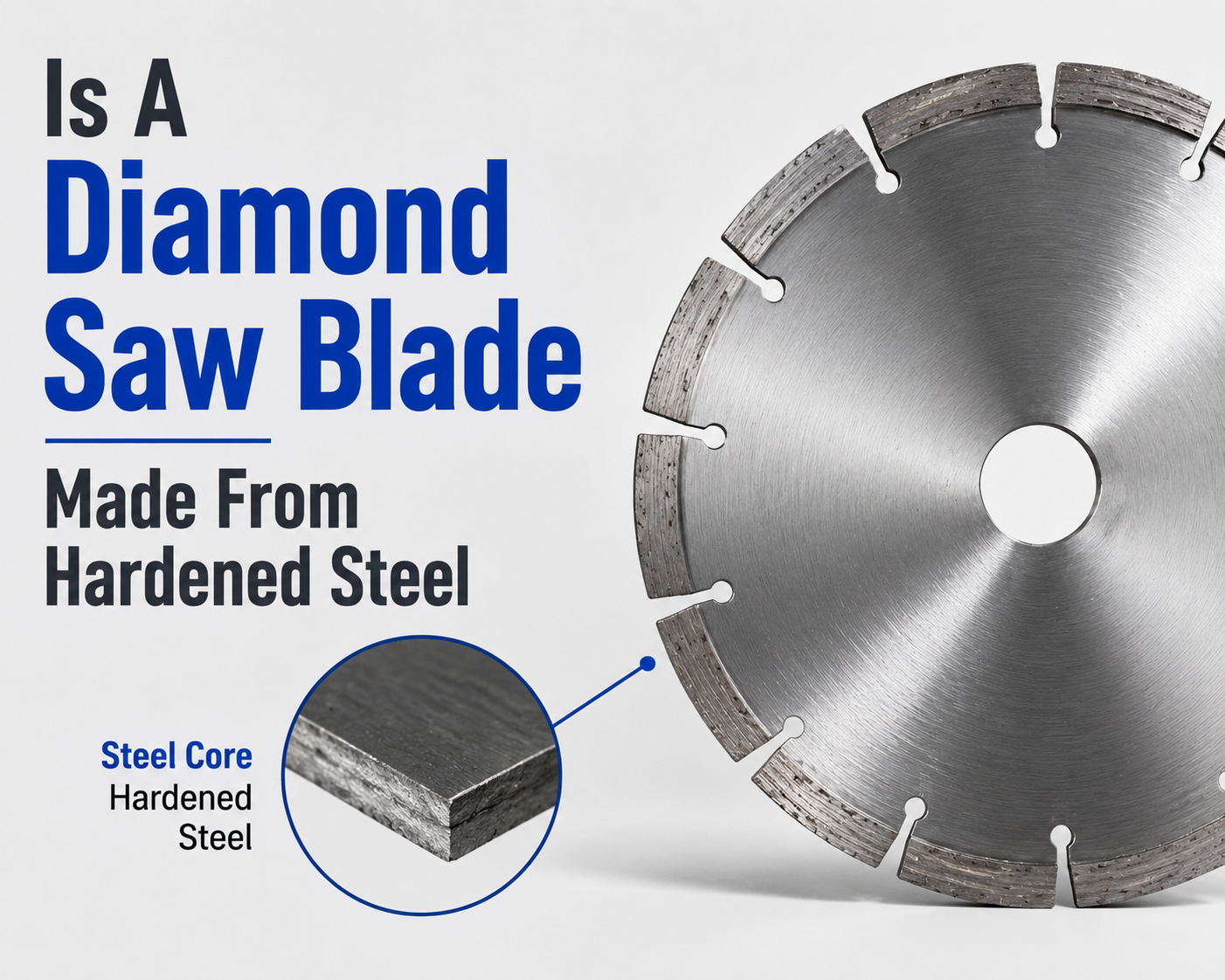

Many people assume a cutting tool relies purely on its outer edge. In reality, the true strength lies much deeper. A high-quality diamond saw blade combines industrial diamonds on the exterior with a heat-treated, hardened steel core inside. This hidden foundation determines how well the tool withstands intense heat and pressure. Understanding this anatomy is critical for contractors and procurement managers alike. Evaluating tooling longevity, safety, and performance directly impacts your project outcomes. If you choose a weak center, you risk catastrophic tool failures and major delays on busy job sites.
In this guide, we will explore the shift from basic material properties to practical evaluation criteria. You will learn about key manufacturing standards, the importance of core tensioning, and essential selection strategies. By the end, you will know exactly how to match the right equipment to your specific daily operational requirements.
Anatomy: A professional diamond blade consists of a tensioned, hardened steel core combined with a diamond-impregnated metal matrix.
Core Integrity: Hardened steel prevents warping, reduces vibration, and maintains stability under extreme heat and RPMs.
The Inverse Rule: Optimal cutting requires matching the matrix bond hardness inversely to the material being cut (e.g., hard bonds for soft, abrasive materials).
ROI Focus: Evaluating blade specifications based on cost-per-cut and operational safety yields better financial outcomes than selecting based on upfront unit cost.
The steel core maintains structural integrity under intense centrifugal forces. Heavy construction tasks generate massive friction. Ordinary metal bends easily under this extreme pressure. Manufacturers use a specialized heat-treatment process. They heat the steel plates above 800 degrees Celsius. Next, technicians rapidly cool or quench the metal. This thermal shock transforms the molecular structure. It hardens the steel significantly.
Hardened steel stops the metal from flexing or binding during deep cuts. However, hardness alone is not enough. High-end cores also undergo a rigorous tensioning process. Technicians hammer or roll the inner gullet areas. They induce compressive stress into the metal. When the tool spins at high speeds, centrifugal forces pull the metal outward. The pre-applied tension cancels out this outward pull. The core stays perfectly flat at specific RPMs. This prevents dangerous wobbling.
The cutting edge handles the actual material removal. We often misunderstand how these tools operate. They do not slice like traditional knives. Instead, they grind or scratch through dense materials. The outer segments feature millions of synthetic industrial diamonds. Factories engineer these crystals for ultimate hardness and durability.
These crystals sit suspended inside a formulated metal powder matrix. Industry professionals call this matrix the bond. As you work, the bond slowly wears away. This controlled wearing process exposes fresh, sharp crystals. If the bond formulation fails, the entire tool stops working. The precise relationship between the steel core and this diamond matrix determines overall success.
Heavy-duty projects demand exceptional structural strength. Laser welding provides the most secure attachment method available. High-intensity laser beams melt the diamond segment directly into the hardened steel core. This process fuses the two parts seamlessly. It creates an unbreakable mechanical bond.
You absolutely need laser-welded tools for dry cutting applications. Cured concrete, hard asphalt, and reinforced rebar generate incredible heat. Traditional adhesives melt under these conditions. Laser welds resist extreme temperatures easily. They drastically reduce the risk of segment loss. This ensures maximum operator safety on busy commercial job sites.
Many contractors need reliable but cost-efficient options for standard materials. Sintering offers an excellent solution. Factories press the diamond and metal powders together inside steel molds. They apply massive heat and pressure simultaneously. The powders melt slightly and bind tightly to the steel core.
Sintered manufacturing works best for continuous rim designs. You use them mostly for wet cutting tasks. They slice through delicate tiles, ceramics, and standard masonry cleanly. The continuous rim delivers incredibly smooth finishes. It prevents fragile materials from chipping or cracking during the cut.
Sometimes you must cut highly sensitive or unusual materials. Electroplating binds a single layer of crystals directly to the surface of the core. This coats the very edge of the metal. You use electroplated tools for delicate glass or fiberglass.
Vacuum brazing uses extreme vacuum environments. It melts a specialized alloy over the crystals. This leaves the diamonds highly exposed. You get extremely aggressive grinding action. Vacuum-brazed rescue blades easily cut through heavy metals, car frames, and thick iron pipes.
A fundamental rule governs tooling success. You must pair materials and bonds inversely. Hard abrasive materials require a soft metal bond. A soft bond wears away quickly against dense concrete. This continuous wearing drops dull crystals and exposes fresh, sharp edges. If you use a hard bond on dense concrete, the metal never wears down. The tool glazes over and stops working.
Conversely, soft abrasive materials require a hard metal bond. Green concrete and fresh asphalt act like sandpaper. They grind away soft metal matrices instantly. A hard matrix holds the crystals tightly. It prevents premature wear and maximizes tool lifespan.
Quick Reference Matrix Chart
Material Type | Common Examples | Required Bond Hardness | Reasoning |
|---|---|---|---|
Hard & Dense | Cured concrete, granite, porcelain | Soft Bond | Sheds metal quickly to constantly expose new sharp diamonds. |
Medium | Standard brick, masonry block | Medium Bond | Balances crystal retention with steady matrix shedding. |
Soft & Abrasive | Asphalt, green concrete, sandstone | Hard Bond | Resists abrasive wear to keep diamonds secured longer. |
Water acts as a crucial coolant during heavy construction. It flushes away abrasive slurry from the cut path. It also suppresses dangerous silica dust effectively. Most importantly, water protects the hardened steel core. Excess heat destroys the metal temper quickly. The steel loses its rigid tension when overheated.
Using a wet-rated diamond blade without water causes immediate disaster. The core warps within minutes. The segments can detach violently. This creates severe safety hazards for the operator. Always respect the moisture rating specified by the manufacturer. If you must cut dry, select a laser-welded tool designed specifically for high-heat environments.
Manufacturers design different outer rim shapes for specific applications. You must choose the right configuration to achieve desired results.
Continuous Rim: Features a solid, unbroken edge. Provides exceptionally smooth finishes. Ideal for porcelain, marble, and ceramic tiles.
Turbo Rim: Features serrated edges. These grooves push dust away rapidly. Cuts masonry and natural stone aggressively while remaining relatively smooth.
Segmented: Features deep gullets between cutting sections. These gaps clear heavy debris and cool the steel core. Handles deep concrete and thick asphalt work effortlessly.
Metal tells a clear visual story. You must monitor your equipment constantly. Blue marks along the steel indicate severe heat damage. A wobbling motion means the metal lost its factory tension. You should always listen to your tools. A dull ringing sound warns of microscopic cracks near the gullets.
Tool failure costs immense amounts of money. Machine downtime stops entire work crews. A warped core can destroy expensive stone slabs instantly. Worse, segment detachment leads to severe operator injury. Proactive inspections prevent these costly disasters. Always tap the steel center lightly while the machine is off. A healthy core rings clearly.
Arbor sizes must fit the machine shaft perfectly. Loose fits cause lethal vibrations. Every core carries a maximum RPM limit stamped on the side. Exceeding this limit invites structural failure. Centrifugal forces easily rip apart over-stressed metal.
Gas-powered saws spin much faster than electric models. A tool designed for a low-speed electric grinder will explode on a high-speed gas saw. Always check your power source specifications. Match them strictly to the designated operating speed. Never force a mismatched center hole onto a larger arbor shaft.
Reputable manufacturers prioritize rigorous safety testing. Look for international safety certifications on the packaging. The oSa (Organization for the Safety of Abrasives) logo signifies strict compliance. Inspectors verify the laser weld strength thoroughly. They test core integrity under extreme bending stress.
Certified tools protect your workforce daily. Unverified tooling lacks strict metallurgical standards. Their steel cores might skip the expensive tensioning process entirely. Never compromise operator safety for a minor discount. Always verify compliance marks before outfitting your crew.
Cheap tools often trick inexperienced buyers. A low upfront price seems highly attractive initially. However, low-grade steel bends quickly under pressure. Poor crystal concentration slows your daily progress. You end up replacing cheap equipment constantly.
Labor costs skyrocket during frequent tool changes. Your operators waste hours swapping out dull equipment. Instead, you must calculate the exact cost per foot of material cut. Premium laser-welded products cost more initially. Yet, they cut faster and last significantly longer. High-quality items yield much better financial outcomes over the lifespan of the project.
You should interrogate your suppliers before placing large bulk orders. Ask them detailed technical questions to gauge their manufacturing quality. Use this structured approach to evaluate vendors:
Are the steel plates tensioned for specific machine RPMs?
Do you utilize laser welding for heavy-duty concrete applications?
What exact synthetic diamond grit sizes do you use?
Can you customize the bond hardness for our specific local aggregates?
Do your products carry verifiable safety certifications?
Never buy bulk quantities blindly. You should run a controlled field test first. Purchase a single unit and give it to your best operator. Log the total linear feet cut accurately. Monitor the cutting speed and finish quality.
Track the lifespan carefully until the segments wear completely down. Establish a reliable performance baseline using this data. Compare the exact cost against the total feet produced. This data-driven strategy guarantees smart purchasing decisions. It eliminates the guesswork from your procurement pipeline entirely.
High-performance cutting tools absolutely rely on hardened steel. The core provides the crucial foundation for safety and stability. However, their true value sits in the precise engineering. The solid steel base and the diamond-impregnated matrix must work together perfectly. Without proper tensioning and heat treatment, even the best synthetic crystals will fail to perform.
We advise buyers to always prioritize application-specific matrix bonds. Choose laser-welded manufacturing for all heavy-duty commercial projects. These methods offer superior safety margins and reliable performance. Stop evaluating equipment based purely on initial purchase prices. Look at the comprehensive performance metrics instead.
We encourage you to consult with tooling specialists early in your planning phase. Request technical specification sheets before finalizing any large procurement orders. Reach out and contact us for expert guidance on selecting your next equipment upgrade.
A: Standard masonry diamond blades are not designed for thick steel. However, vacuum-brazed rescue blades or specifically formulated metal-cutting diamond blades can cut through hardened steel and rebar effectively. They use highly exposed synthetic crystals to grind through the dense metal safely.
A: Look for a blue tint on the metal, which indicates severe heat damage. Check for microscopic cracks near the gullets. Watch for a wobbling motion during operation. You can also tap the steel while it is off the machine; a dull sound warns of internal stress fractures.
A: This happens due to "glazing." The metal bond is too hard for the material being cut. The diamonds wear flat, and the matrix does not shed away properly to expose fresh, sharp crystals. You must switch to a softer bond to fix this issue.
A: Tensioning is a specialized manufacturing process. Technicians roll or hammer the hardened steel core to pre-stress it. This ensures the metal remains rigid and runs perfectly true when subjected to intense centrifugal forces and heat at high speeds.
