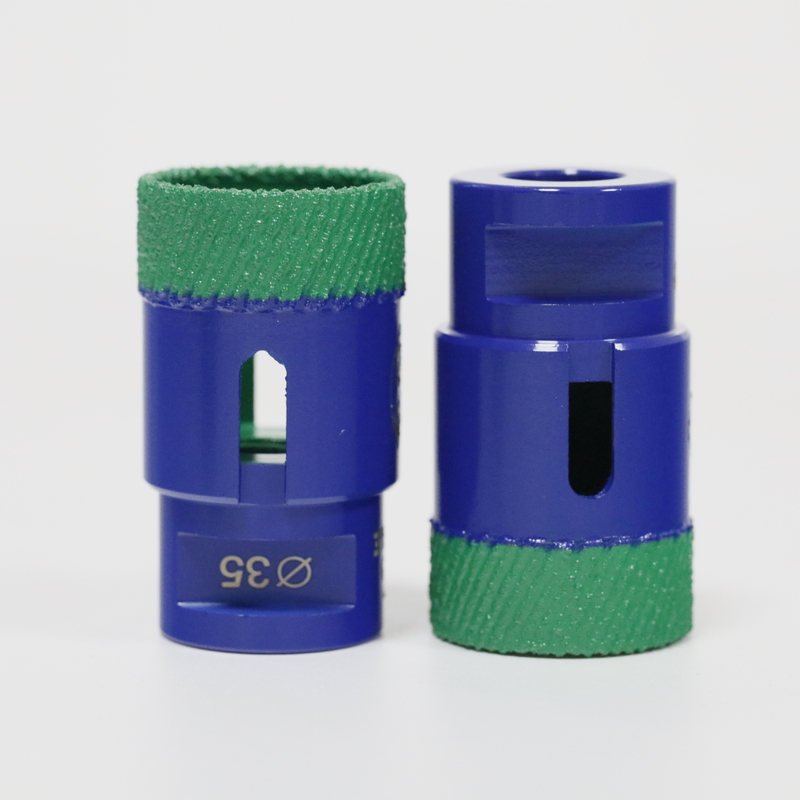

Matrix Turbo Drill Bit For Porcelain Gres

Application: For dry drilling porcelain, granite, marble, dekton, etc.
Type: Matrix design
Diamond grit: 40/45#
Available size: 5-150mm
Thread: M14, 5/8''-11, M10
Feature: Extremely Fast Speed, Durable life
Color: Can be customized according to RAL or Pantone code
Availability:
Quantity:
  • ZSDB002

  • ZSTOOL

  • 8207501000

Model:

ZSDB002

Application:

Drilling Porcelain Tile, Granite, Dekton, Marble, Cobblestone, etc.

Feature:

Fast drilling in dry condition, self-sharpening

Working condition:

Ideal for dry drilling, if used with water, the working life will be longer

Diamond Grit:

40/45#

Thread type:

M14, 5/8’’-11, M10, 1/2GAS

Size:

18-150mm

Segment height:

10mm, 15mm

Total length:

62mm, 90mm, can be customized

Machinery:

Angle grinder

Recommend RPM:

12,200

Package:

PVC Plastic Tube, Paper Box, Blister, can be customized

Gres Holesaw Tile Core Bit Porcelain Drill bit


ModelSizes
ZSDB002-55*10*60mm with wax
ZSDB002-66*10*60mm with wax
ZSDB002-88*10*60mm with wax
ZSDB002-1010*10*60mm with wax
ZSDB002-1212*10*60mm with wax
ZSDB002-1414*10*60mm with wax
ZSDB002-1515*10*60mm with wax
ZSDB002-1616*10*60mm with wax
ZSDB002-1818*15*60mm
ZSDB002-2020*15*60mm
ZSDB002-2222*15*60mm
ZSDB002-2525*15*60mm
ZSDB002-2727*15*60mm
ZSDB002-2828*15*60mm
ZSDB002-3030*15*60mm
ZSDB002-3232*15*60mm
ZSDB002-3535*15*60mm
ZSDB002-3838*15*60mm
ZSDB002-4040*15*60mm
ZSDB002-4242*15*60mm
ZSDB002-4545*15*60mm
ZSDB002-5050*15*60mm
ZSDB002-5252*15*60mm
ZSDB002-5555*15*60mm
ZSDB002-6060*15*60mm
ZSDB002-6565*15*60mm
ZSDB002-6868*15*60mm
ZSDB002-7070*15*60mm
ZSDB002-7575*15*60mm
ZSDB002-7878*15*60mm
ZSDB002-8080*15*60mm
ZSDB002-8282*15*60mm
ZSDB002-8585*15*60mm
ZSDB002-8989*15*60mm
ZSDB002-100100*15*60mm
ZSDB002-102102*15*60mm
ZSDB002-105105*15*60mm
ZSDB002-110110*15*60mm
ZSDB002-115115*15*60mm
ZSDB002-120120*15*60mm
ZSDB002-125125*15*60mm
ZSDB002-130130*15*60mm
