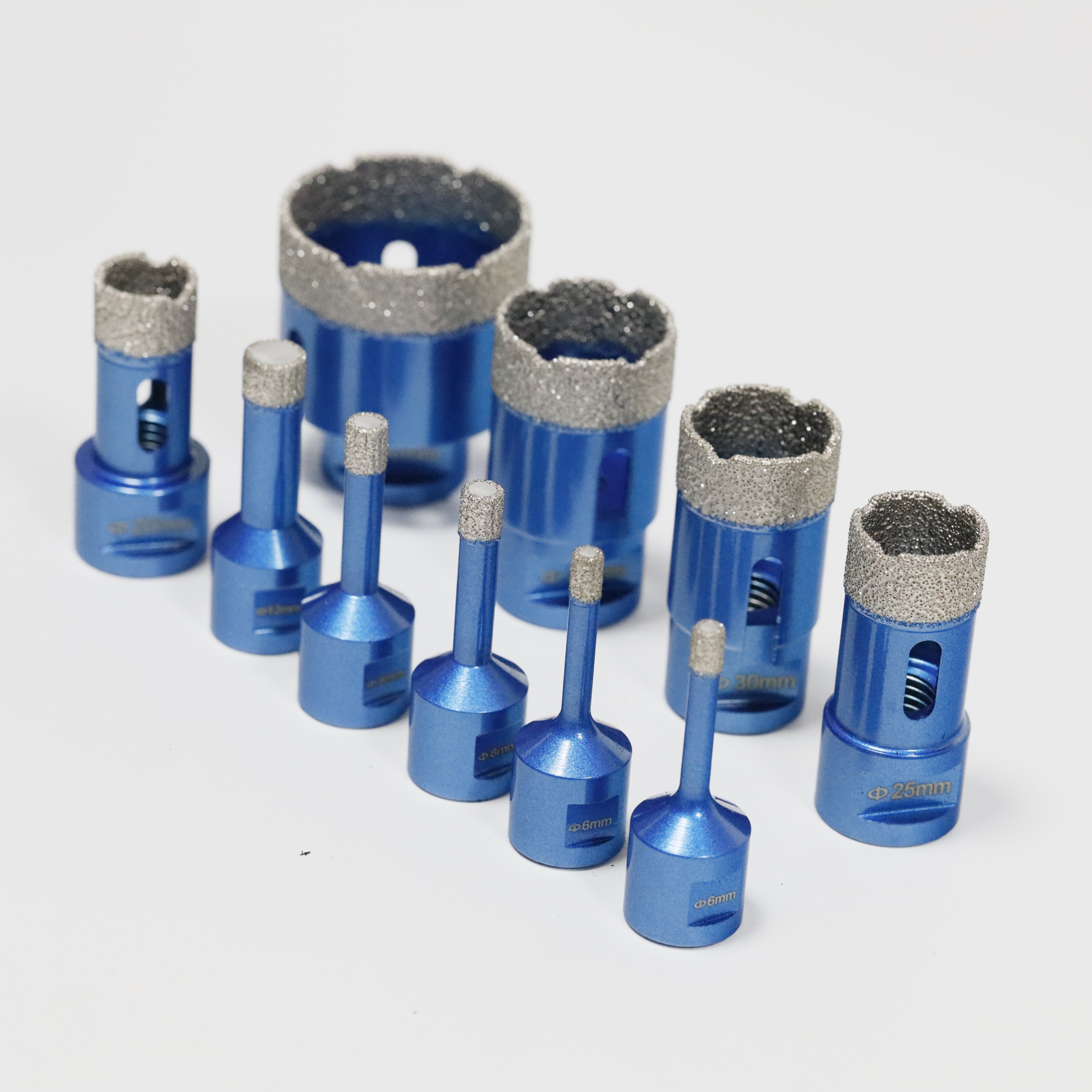

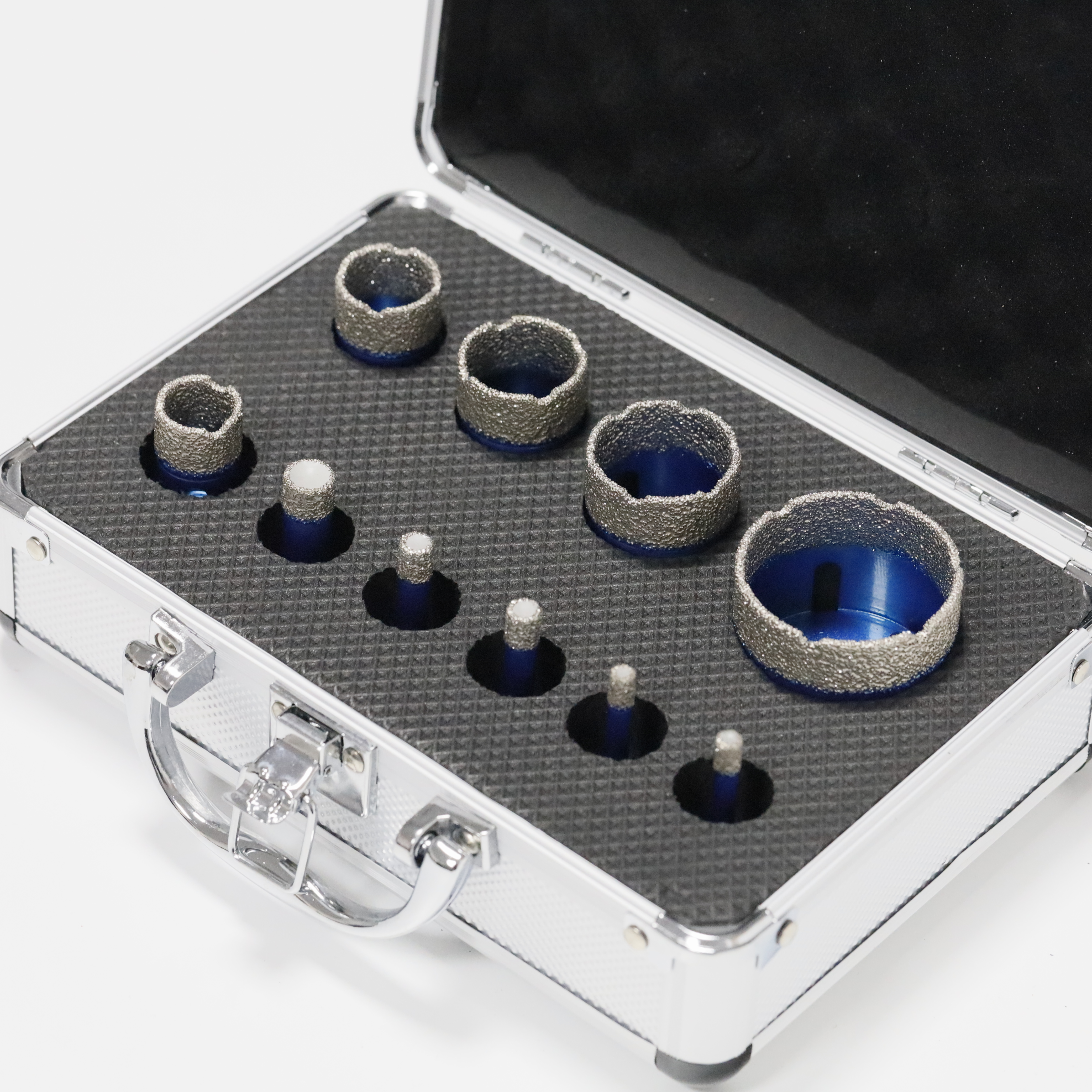

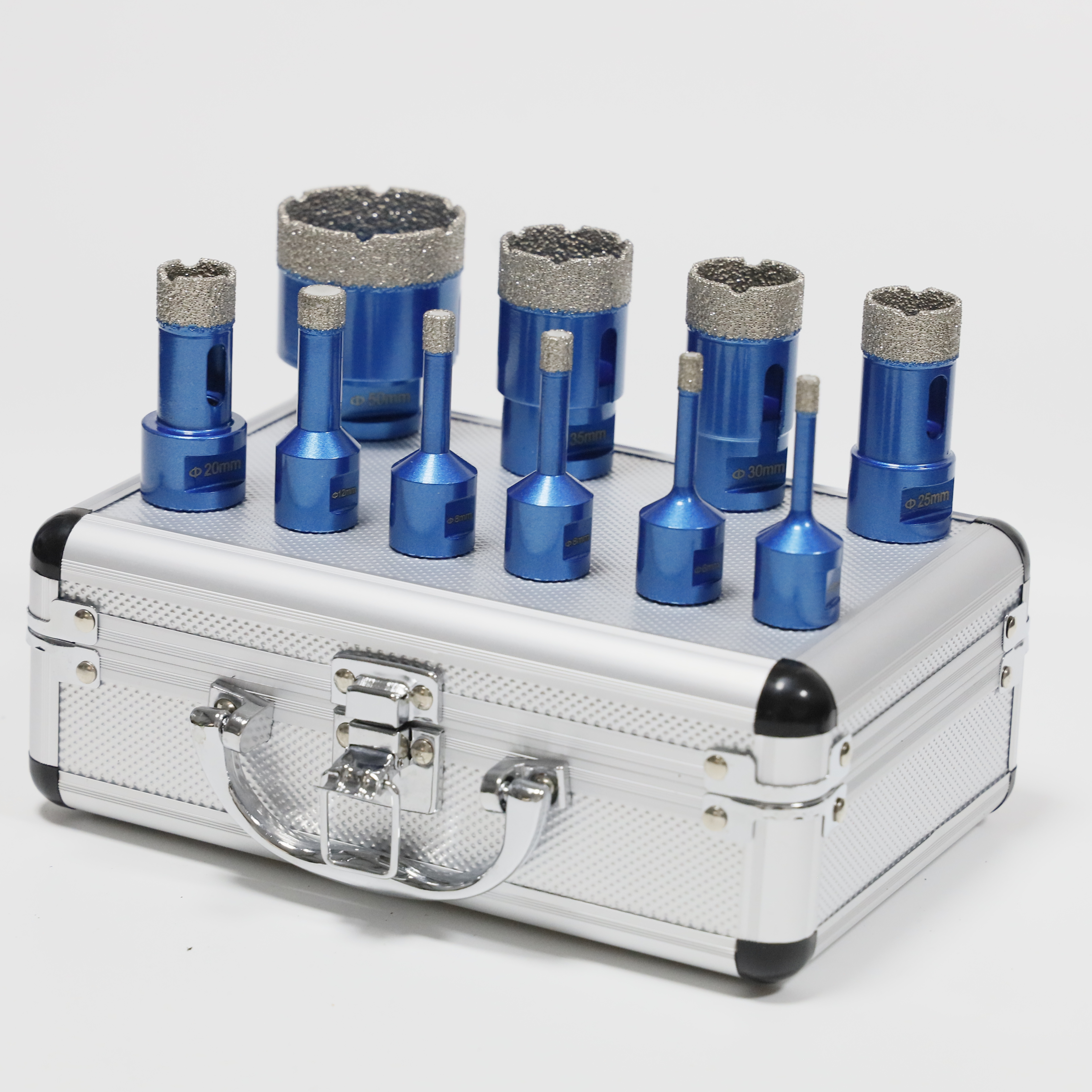

Premium M14 Vacuum Brazed Diamond Drill Bit Set

Premium M14 vacuum brazed diamond drill bit set for distributors, installers and professional tile contractors.

Applications: Porcelain, ceramic tile, granite, marble and sintered stone
Product format: Multi-size drill bit set
Connection options: M14, 5/8-11, M10 and 1/2 GAS
Advantages: Fast dry drilling, practical size combinations and durable vacuum brazed working surfaces
OEM support: Custom size assortment, case layout, color, logo and packaging
Availability:
Quantity:
Inquire Add to Basket

  • ZSDB001-S10

  • ZSTOOL

  • 8207501000

Model: ZSDB001-S10Model: ZSDB001-S10Model:

ZSDB001-S8

Application:

Drilling Porcelain Tile, Granite, Dekton, Marble, Cobblestone, etc.

Feature:

Fast drilling in dry condition, self-sharpening

Working condition:

Ideal for dry drilling, if used with water, the working life will be longer

Diamond Grit:

40/45#

Thread type:

M14, 5/8’’-11, M10, 1/2GAS

Size:

18-150mm

Segment height:

10mm, 15mm

Total length:

62mm, 90mm, can be customized

Machinery:

Angle grinder

Recommend RPM:

12,200

Package:

PVC Plastic Tube, Paper Box, Blister, can be customized

Gres Holesaw Tile Core Bit Porcelain Drill bit


Product type: Premium vacuum brazed diamond drill bit set

Applications: Porcelain tile, ceramic tile, granite, marble and sintered stone

Working condition: Designed for dry drilling; water may be used to extend working life where appropriate

Diamond grit: 40/45#

Connection options: M14, 5/8-11, M10 and 1/2 GAS

Available sizes: Selectable set combinations from the standard drill bit range

Machinery: Angle grinder

OEM and private-label service: Custom size assortment, case layout, color, logo and packaging

Send us your target material, required hole sizes and market connection standard for a recommended set configuration and quotation.
