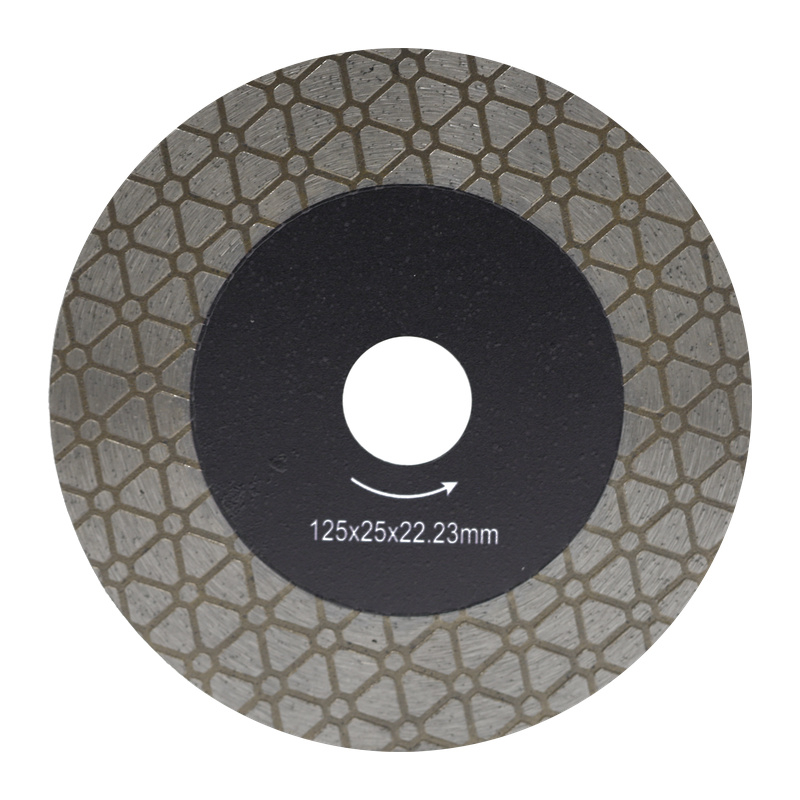

Fine Honeycomb Diamond Cut and Grind Blade
Model: DSB-115125-S-T-HC
Product Type: Double-sided hot-pressed diamond cutting and grinding blade with fine honeycomb working pattern.
Available Sizes: 115 mm and 125 mm.
Bore: 22.23 mm.
Working Layer Thickness: 1.6 mm.
Working Layer Height: 25 mm.
Blade Shape and Function: Small interconnected honeycomb cells create a dense and evenly supported diamond surface. The fine network keeps contact pressure uniform, minimizes vibration and provides numerous micro-channels for dust removal, favoring smooth edge quality over aggressive stock removal.
Applications: Ceramic tile, porcelain, gres, Dekton-type sintered stone, marble, quartz and engineered stone.
Recommended Operations: Clean straight cutting, 45° mitre cutting, precision chamfering, edge refinement and fine grinding with a compatible angle grinder. Suitable for dry or wet operation.
Advantages:
• Fine honeycomb pattern for uniform contact
• Smooth cutting and refined edge finish
• Lower vibration and controlled material removal
• 1.6 mm thickness and 25 mm working height
• Available in 115 mm and 125 mm
Confirm maximum RPM and machine compatibility before use.
