| Quantity: | |
|---|---|
ZSDB002
ZSTOOL
8207501000

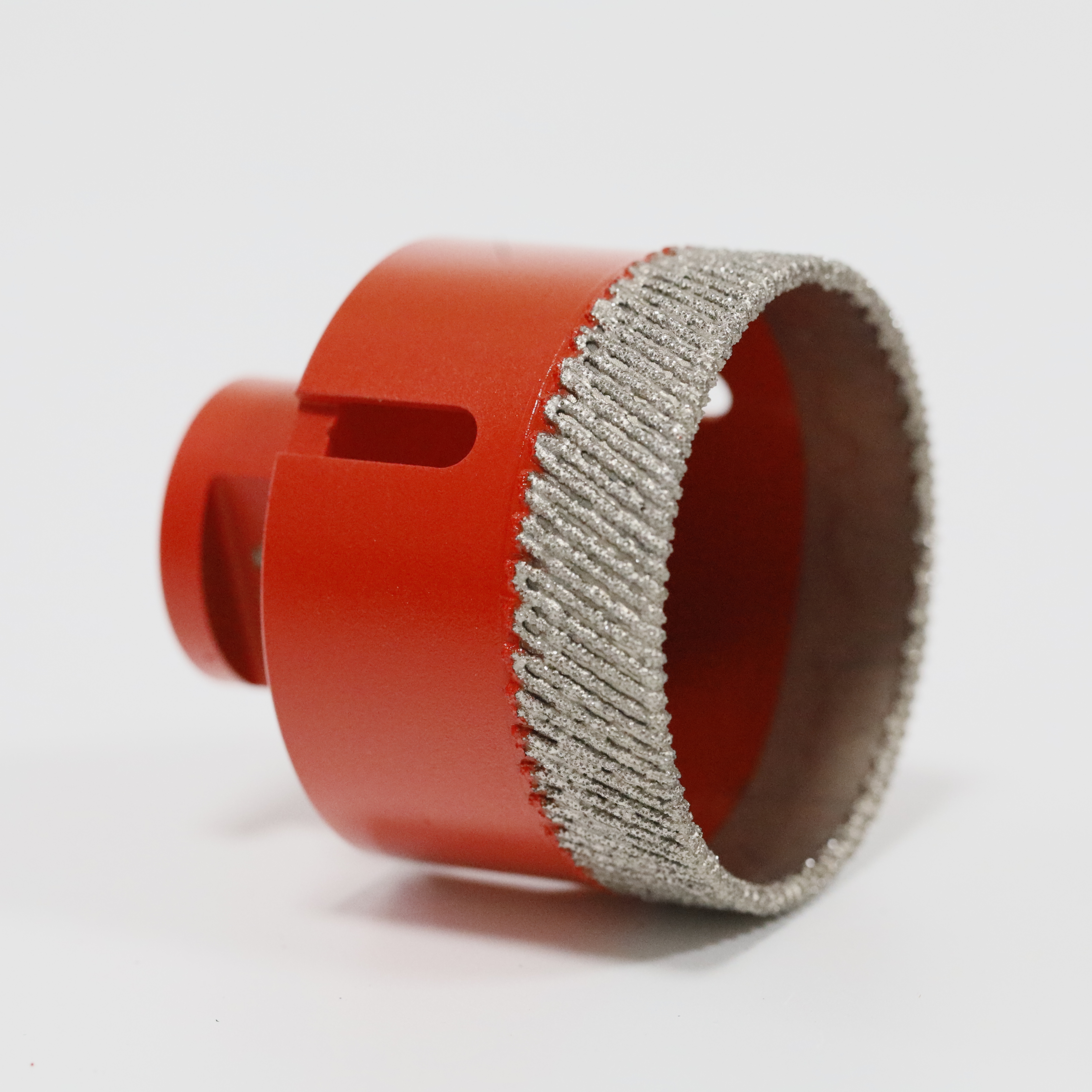

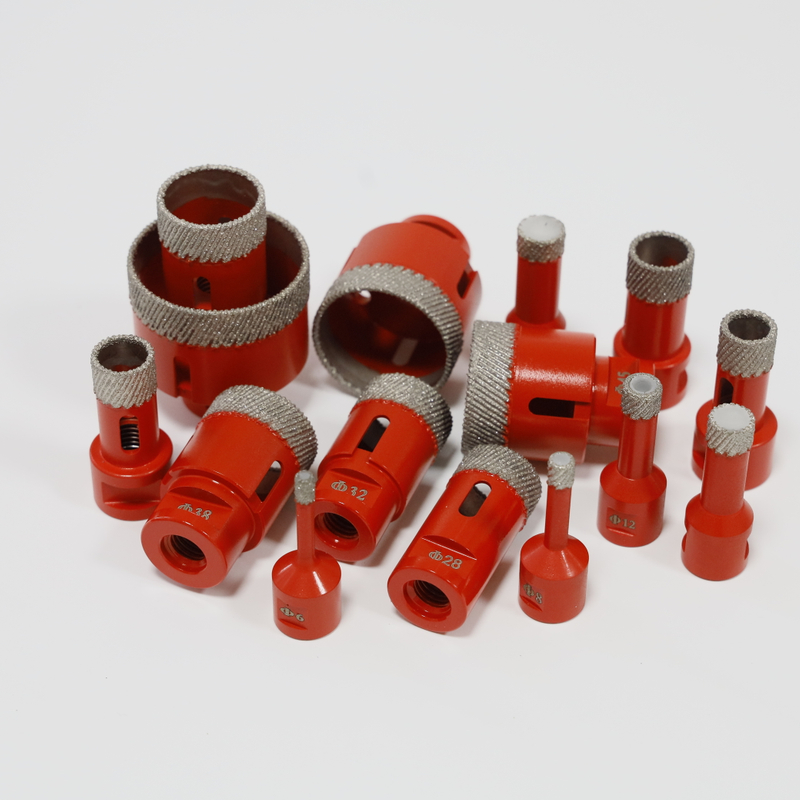

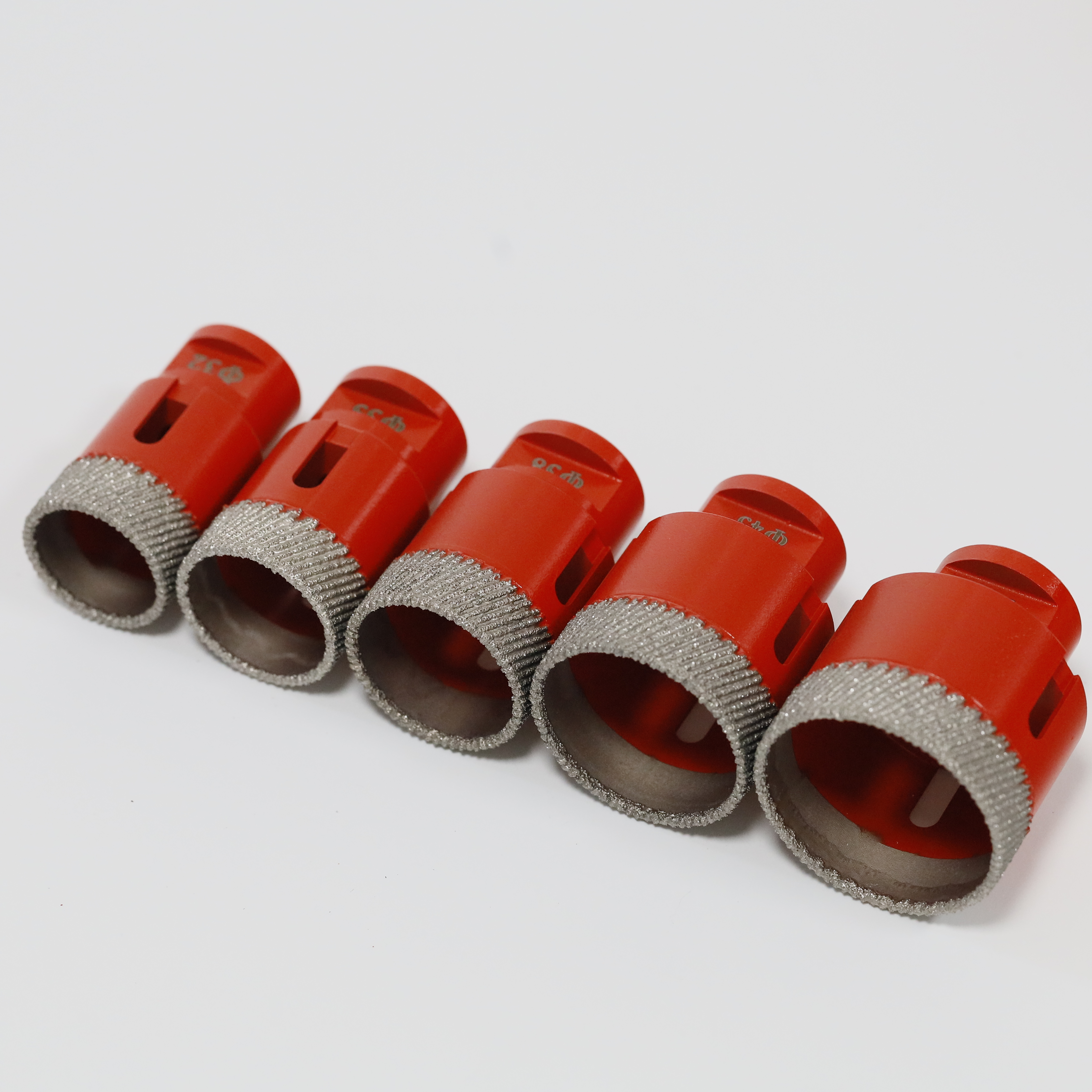

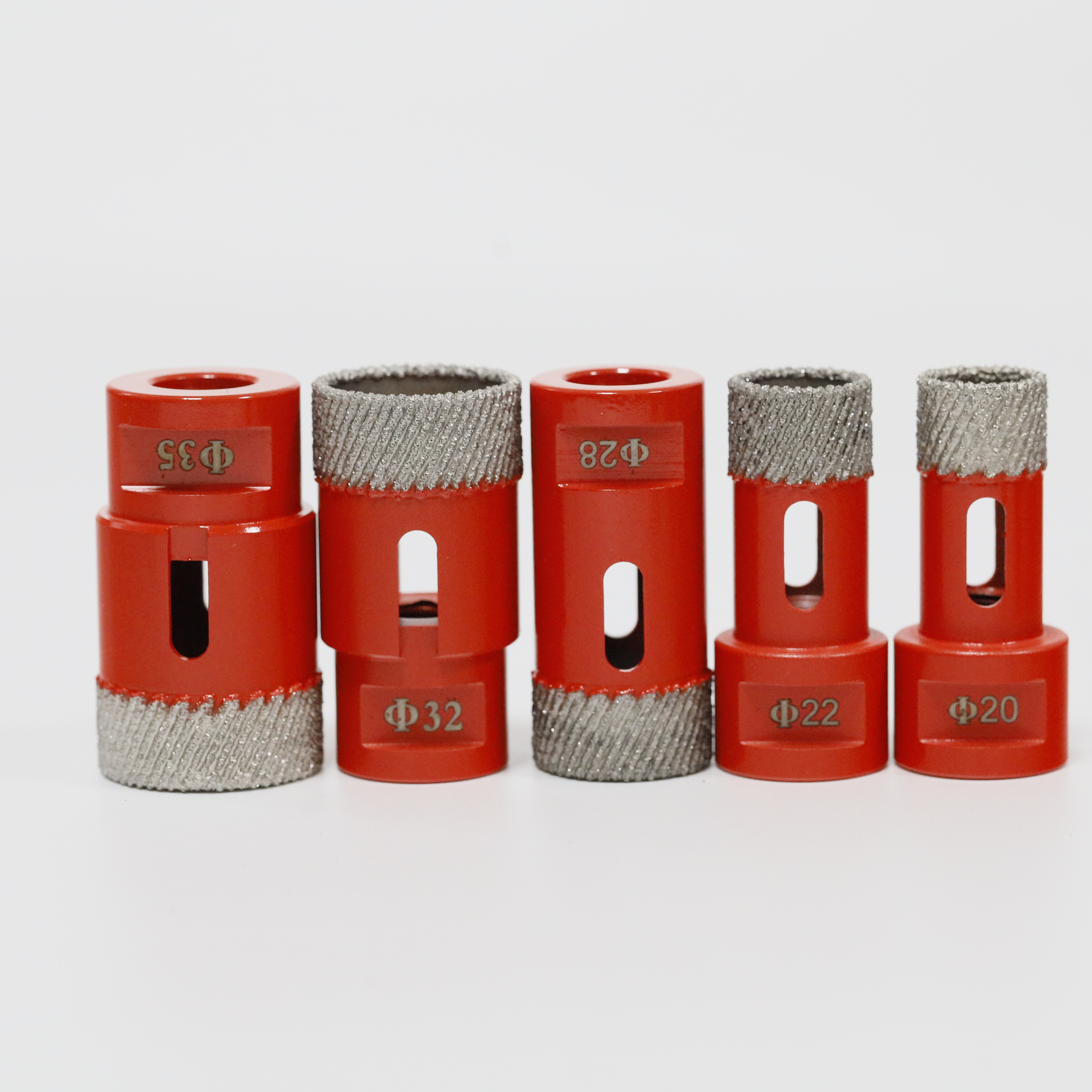

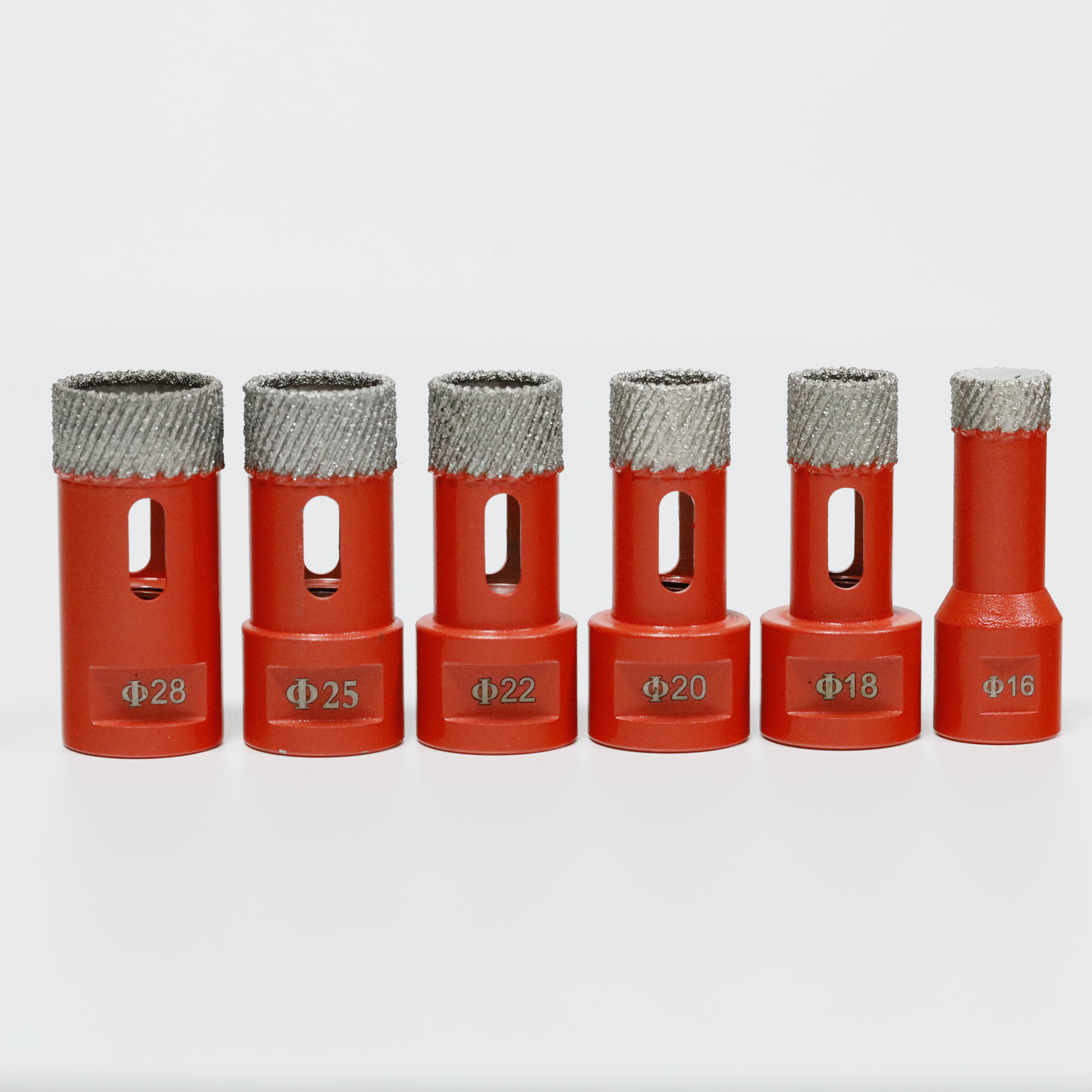

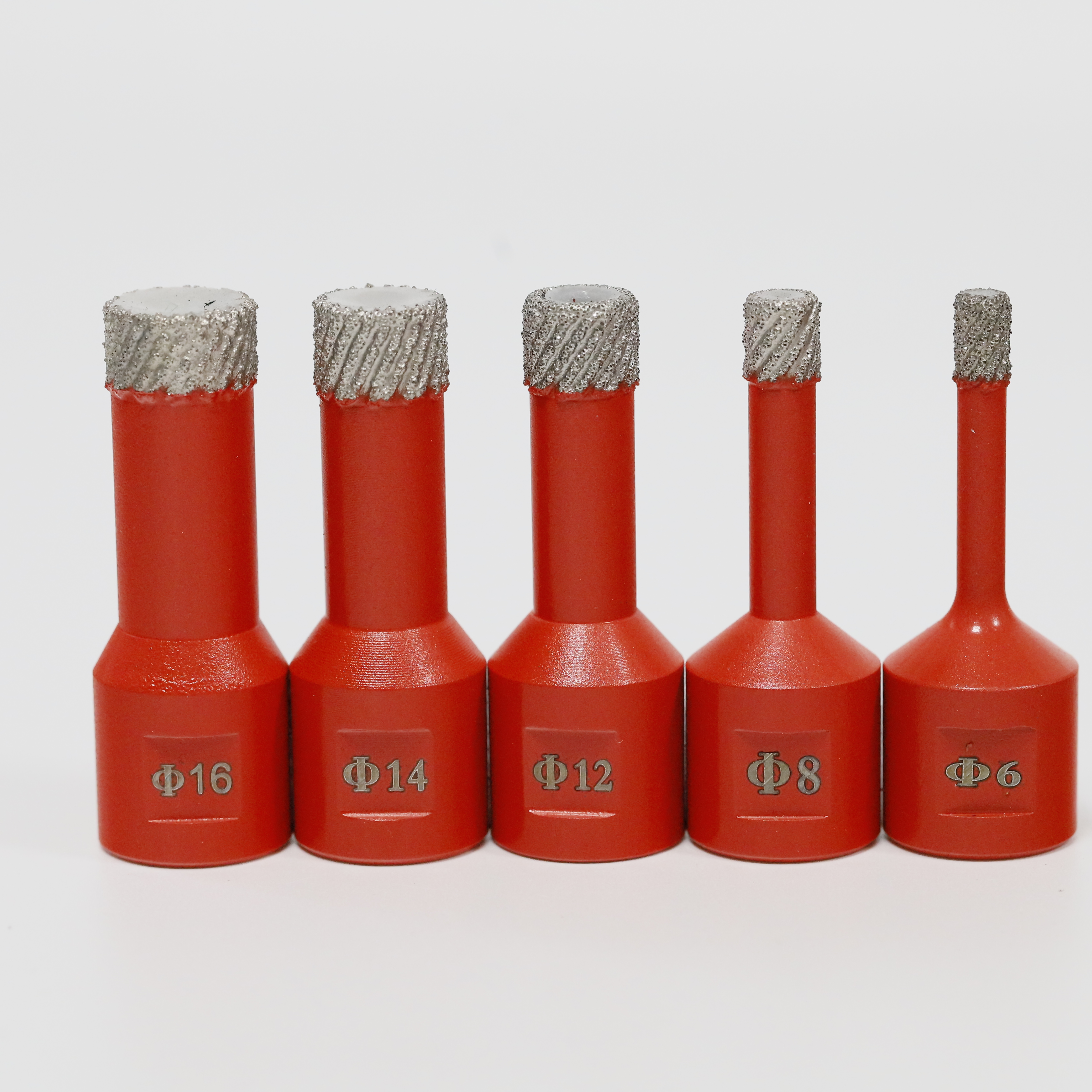

Matrix Vacuum Brazed Diamond Drill Bits are designed for drilling porcelain, ceramic tile, granite, marble and sintered stone. This ZSDB002 range includes the sizes listed below, from 5 mm to 130 mm. M14, 5/8-11 and M10 connection options are available; confirm the required connection and size when ordering. Custom logo, color and packaging options are available for distributor and OEM orders.
Available sizes:
| Model | Sizes |
| ZSDB002-5 | 5*10*60mm with wax |
| ZSDB002-6 | 6*10*60mm with wax |
| ZSDB002-8 | 8*10*60mm with wax |
| ZSDB002-10 | 10*10*60mm with wax |
| ZSDB002-12 | 12*10*60mm with wax |
| ZSDB002-14 | 14*10*60mm with wax |
| ZSDB002-15 | 15*10*60mm with wax |
| ZSDB002-16 | 16*10*60mm with wax |
| ZSDB002-18 | 18*15*60mm |
| ZSDB002-20 | 20*15*60mm |
| ZSDB002-22 | 22*15*60mm |
| ZSDB002-25 | 25*15*60mm |
| ZSDB002-27 | 27*15*60mm |
| ZSDB002-28 | 28*15*60mm |
| ZSDB002-30 | 30*15*60mm |
| ZSDB002-32 | 32*15*60mm |
| ZSDB002-35 | 35*15*60mm |
| ZSDB002-38 | 38*15*60mm |
| ZSDB002-40 | 40*15*60mm |
| ZSDB002-42 | 42*15*60mm |
| ZSDB002-45 | 45*15*60mm |
| ZSDB002-50 | 50*15*60mm |
| ZSDB002-52 | 52*15*60mm |
| ZSDB002-55 | 55*15*60mm |
| ZSDB002-60 | 60*15*60mm |
| ZSDB002-65 | 65*15*60mm |
| ZSDB002-68 | 68*15*60mm |
| ZSDB002-70 | 70*15*60mm |
| ZSDB002-75 | 75*15*60mm |
| ZSDB002-78 | 78*15*60mm |
| ZSDB002-80 | 80*15*60mm |
| ZSDB002-82 | 82*15*60mm |
| ZSDB002-85 | 85*15*60mm |
| ZSDB002-89 | 89*15*60mm |
| ZSDB002-100 | 100*15*60mm |
| ZSDB002-102 | 102*15*60mm |
| ZSDB002-105 | 105*15*60mm |
| ZSDB002-110 | 110*15*60mm |
| ZSDB002-115 | 115*15*60mm |
| ZSDB002-120 | 120*15*60mm |
| ZSDB002-125 | 125*15*60mm |
| ZSDB002-130 | 130*15*60mm |
Select the required model and diameter from the table above, then confirm the connection and working depth for your machine. The listed sizes include wax-filled options from 5 mm to 16 mm. Confirm the exact configuration for each size before ordering.
Material or slab brand and thickness.
Required hole diameters and quantity per diameter.
Machine model, thread or connection, and working depth.
Sample quantities or planned bulk-order quantities.
Destination country and preferred packaging.
For OEM or private-label orders, include your logo, body color and set configuration. Share your application if you need help narrowing down the available options.
