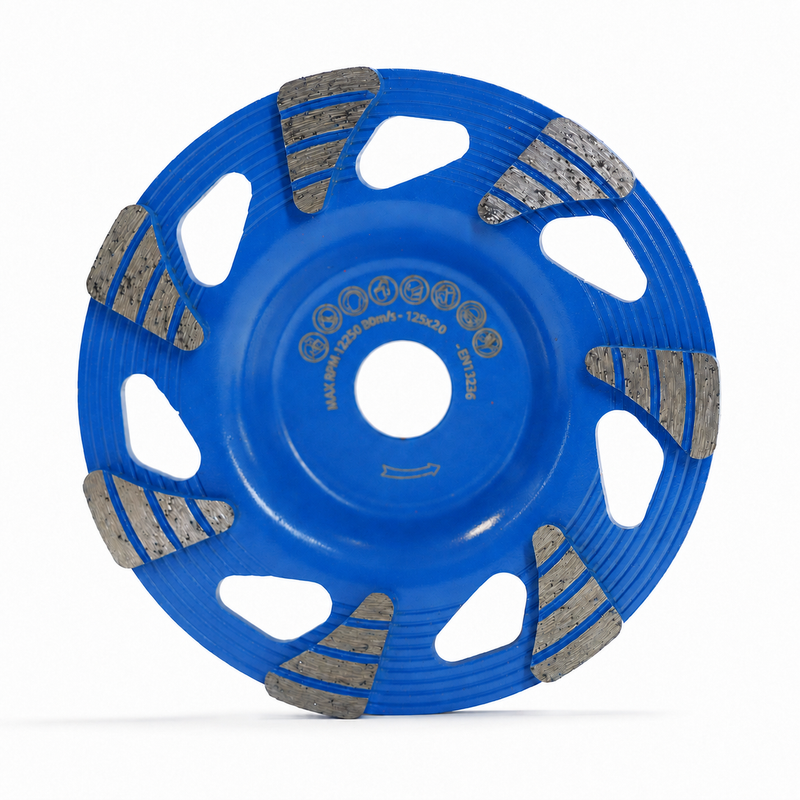

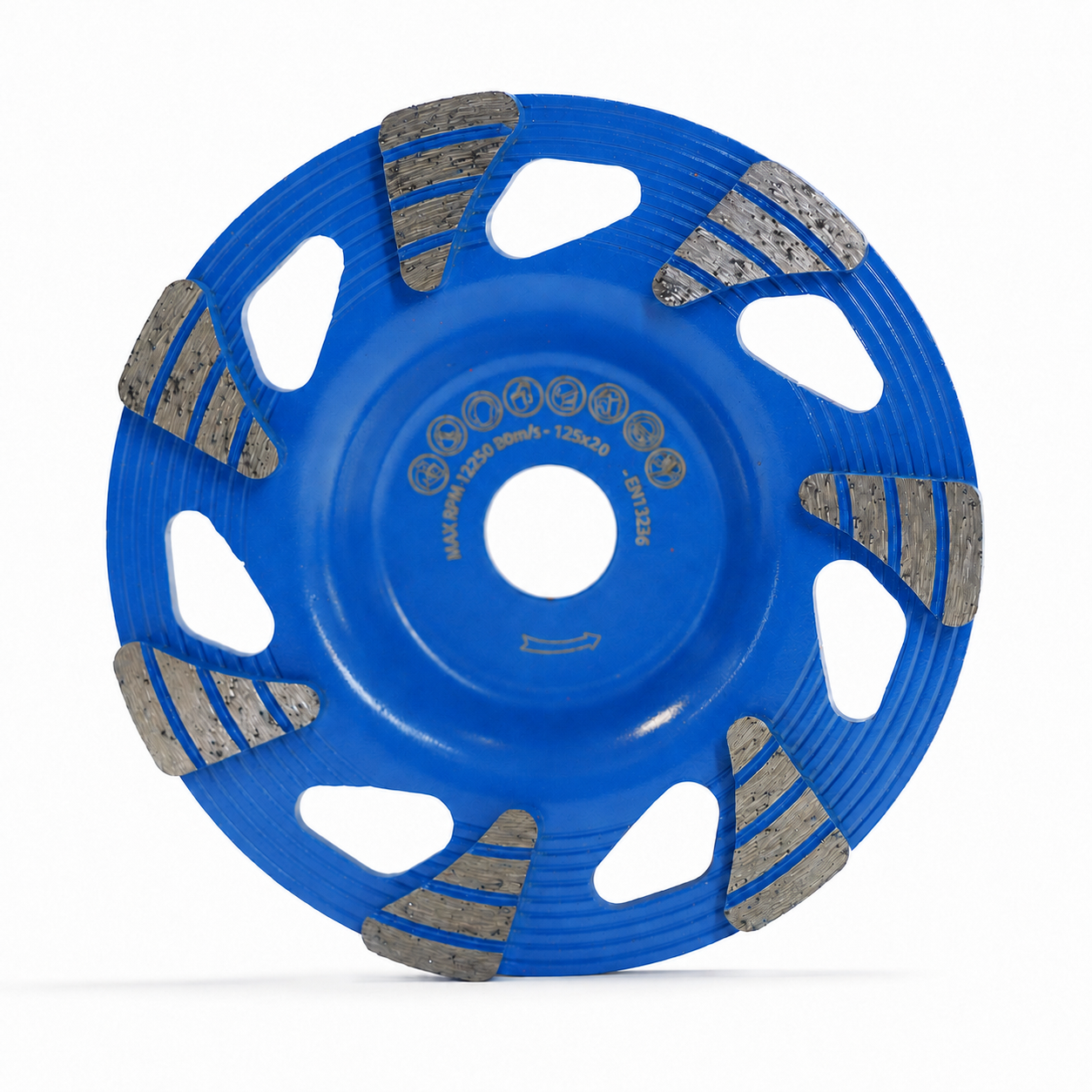

125mm 6-Fan Segment Diamond Cup Wheel for Concrete Grinding

PRODUCT OVERVIEW

The 125mm 6-Fan Segment Diamond Cup Wheel is designed for professional grinding, leveling and surface preparation of concrete and other cement-based construction materials. Six evenly distributed fan-shaped segment groups provide stable surface contact and efficient material removal while helping maintain controlled grinding performance.

The grooves dividing each segment group increase the number of working edges and provide additional paths for dust discharge. Combined with the large ventilation openings in the steel body, this design supports airflow, heat dissipation and more efficient dry grinding.

KEY FEATURES

• Six grooved fan-shaped diamond segment groups
• Designed for concrete grinding, leveling and surface preparation
• Stable segment distribution for balanced grinding contact
• Open steel body supports cooling and dust extraction
• Metal-bond diamond segments for professional service life
• Suitable for compatible angle grinders and concrete grinders
• Manufactured to the EN13236 safety standard
• OEM bond, grit, color, marking and packaging options available

TECHNICAL SPECIFICATIONS

Product type: Fan Segment Diamond Cup Wheel
Model: ZS-DCW125-FS6-20
Diameter: 125mm / 5 inch
Bore: 20mm
Segment layout: Six grooved fan segment groups
Maximum speed: 12,250 RPM
Maximum peripheral speed: 80m/s
Standard: EN13236
Recommended operation: Dry grinding
Machine: Compatible angle grinder or concrete grinder

RECOMMENDED APPLICATIONS

• Grinding uneven concrete surfaces
• Leveling high spots and construction joints
• Preparing concrete before coating or finishing
• Removing cement residue and thin mortar deposits
• General renovation of concrete, screed and masonry surfaces
• Edge and wall grinding with a compatible guarded machine

SUITABLE MATERIALS

Concrete, cement, screed, brick, block and general masonry materials.

Grinding performance depends on the hardness and abrasiveness of the material. Different diamond grit sizes and metal-bond hardness options can be supplied for hard, medium or soft concrete.

OPERATING RECOMMENDATIONS

Confirm that the grinder speed does not exceed 12,250 RPM. Install the wheel securely on a machine compatible with the 20mm bore. Use a suitable wheel guard and dust-extraction shroud whenever possible.

Apply steady, controlled pressure and keep the wheel moving across the surface. Excessive pressure may increase heat, vibration and uneven wear without improving grinding efficiency.

SAFETY INFORMATION

Wear approved eye, hearing and respiratory protection. Inspect the wheel before every use and do not operate a damaged, cracked or excessively worn wheel. Make sure the direction of rotation is correct and do not exceed the maximum speed marked on the wheel.

OEM AND WHOLESALE SUPPORT

OEM services are available for diamond grit, bond hardness, segment height, wheel color, laser marking, labels and packaging. Please provide the application material, concrete hardness, target grinding performance, order quantity and packaging requirements when requesting a quotation.
