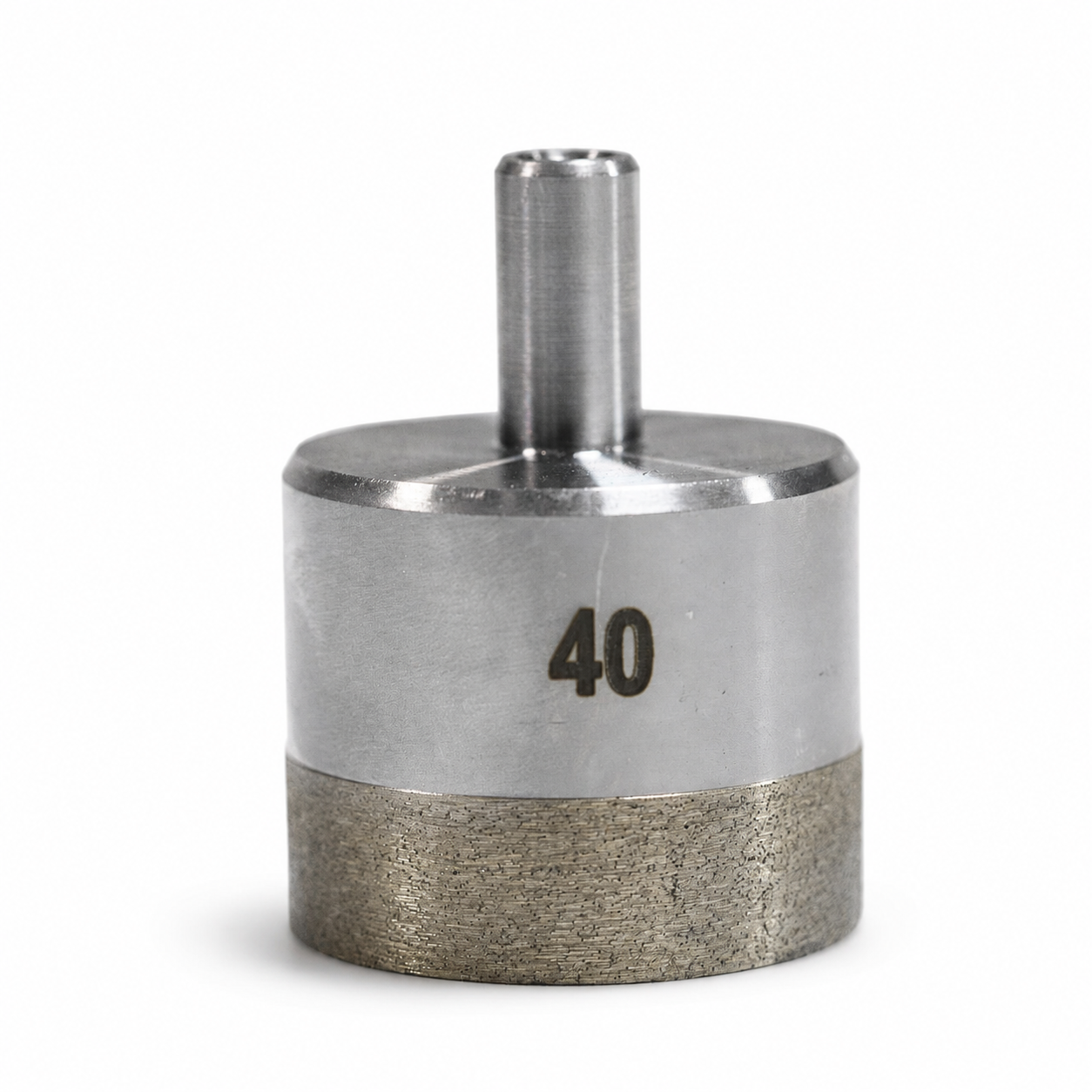

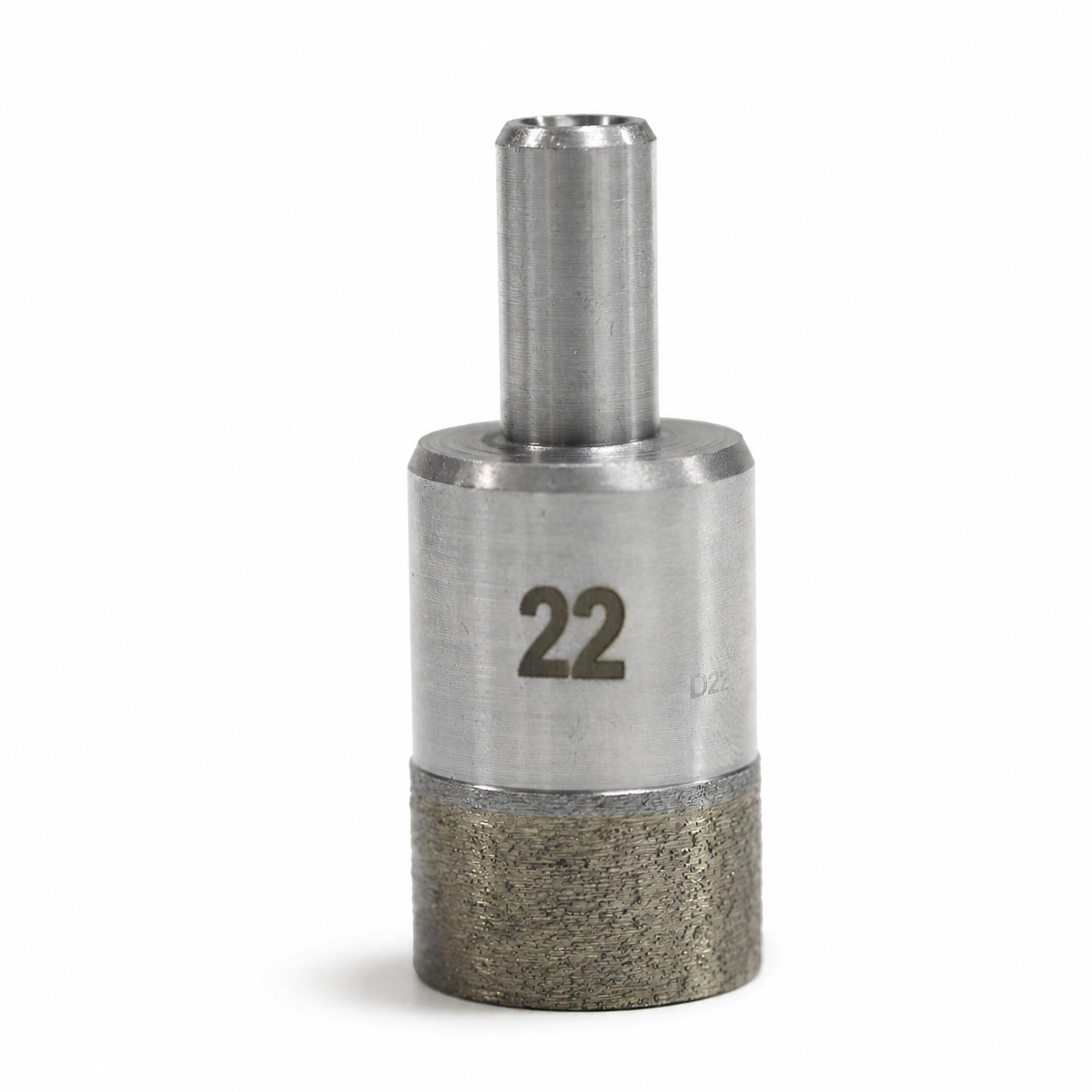

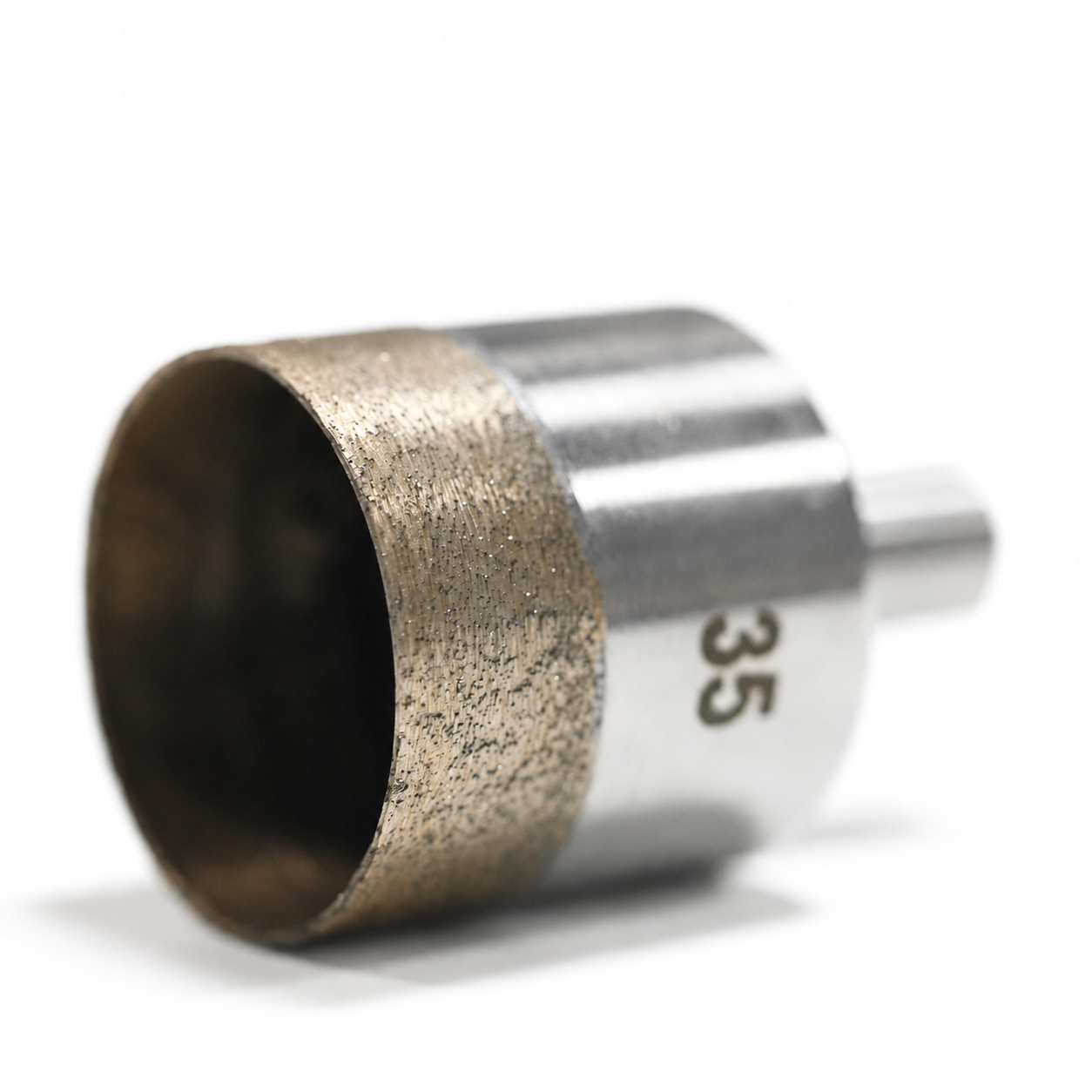

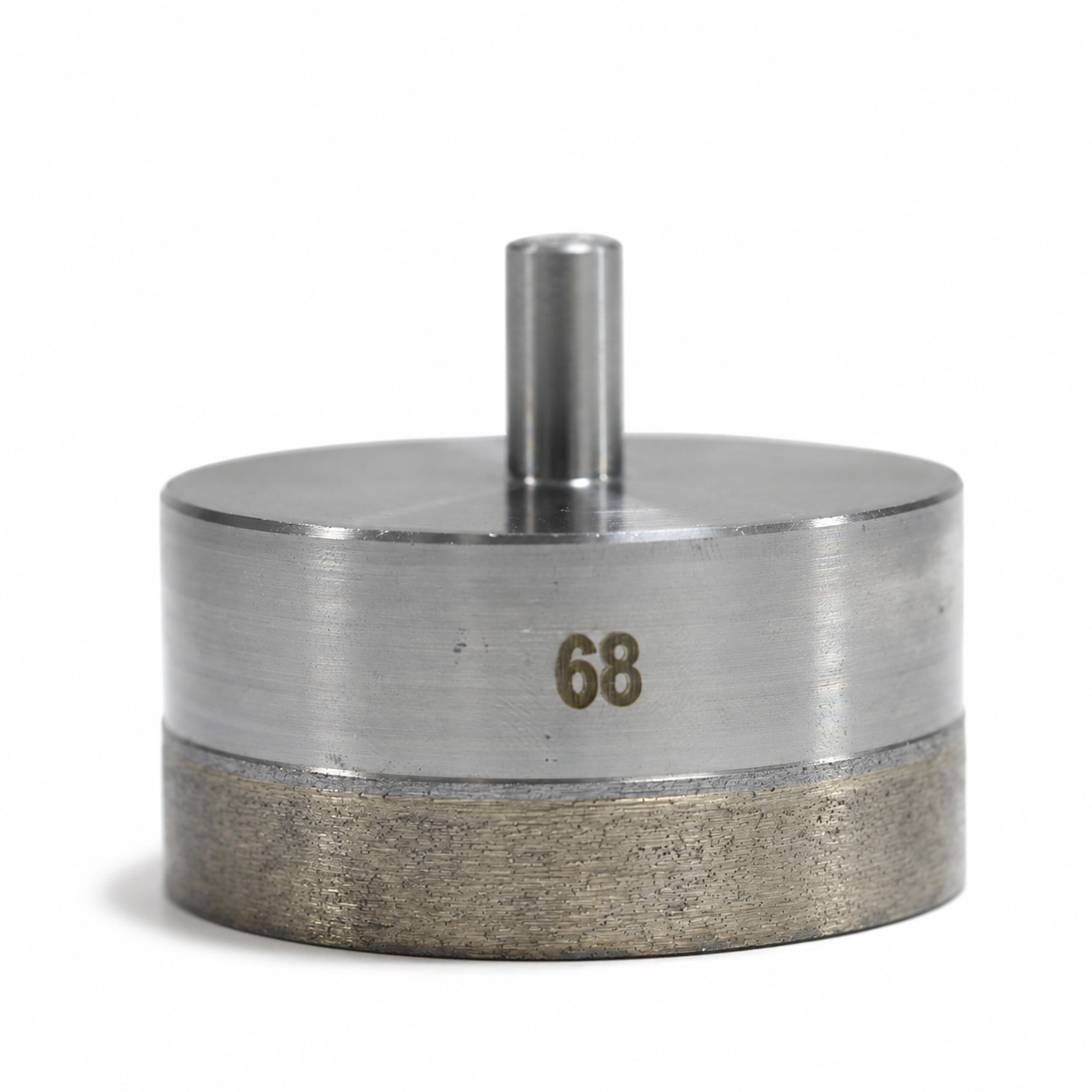

6-150mm 0.95mm Thin Wall Wet Sintered Diamond Core Drill Bit for Porcelain Ceramic Tile and Sintered Stone

6-150mm Thin Wall Wet Sintered Diamond Core Drill Bit

This professional wet sintered diamond core drill bit is developed for drilling clean and accurate holes in hard building materials, including porcelain tiles, ceramic tiles, sintered stone slabs and marble.

The drill bit uses sintered diamond manufacturing technology and features an approximately 0.95mm thin cutting wall. The thin-wall construction helps reduce drilling resistance, improves cutting efficiency and minimizes unnecessary damage around the edge of the hole.

A Complete Size Range

The drill bits are available in diameters from 6mm to 150mm. Smaller sizes are suitable for fixing holes, anchors and pipe fittings, while larger diameters can be used for plumbing pipes, drainage openings, electrical installations and other construction applications.

Available diameter range:
6-150mm

Specific diameters and shank configurations can be supplied according to customer requirements.

Designed for Wet Drilling

Continuous water cooling is required during drilling. Water helps cool the diamond cutting edge, remove drilling debris and reduce heat accumulation. Correct water supply can also improve drilling performance and extend the working life of the drill bit.

The product should not be used for dry drilling.

Suitable Machines

The straight-shank design is intended for use with:

• Electric hand drills
• Corded or cordless drills with suitable drill chucks
• Bench drilling machines
• Other compatible rotary drilling equipment

This drill bit is not designed for angle grinders. Always use the drill in rotary mode and switch off the hammer or impact function.

Recommended Materials

• Porcelain tile
• Ceramic tile
• Sintered stone
• Large-format porcelain slab
• Marble
• Similar hard decorative building materials

Typical Applications

• Plumbing and water-pipe openings
• Bathroom and kitchen installation
• Faucet and basin installation
• Electrical cable openings
• Drainage holes
• Wall and floor tile installation
• General building-material fabrication

Main Advantages

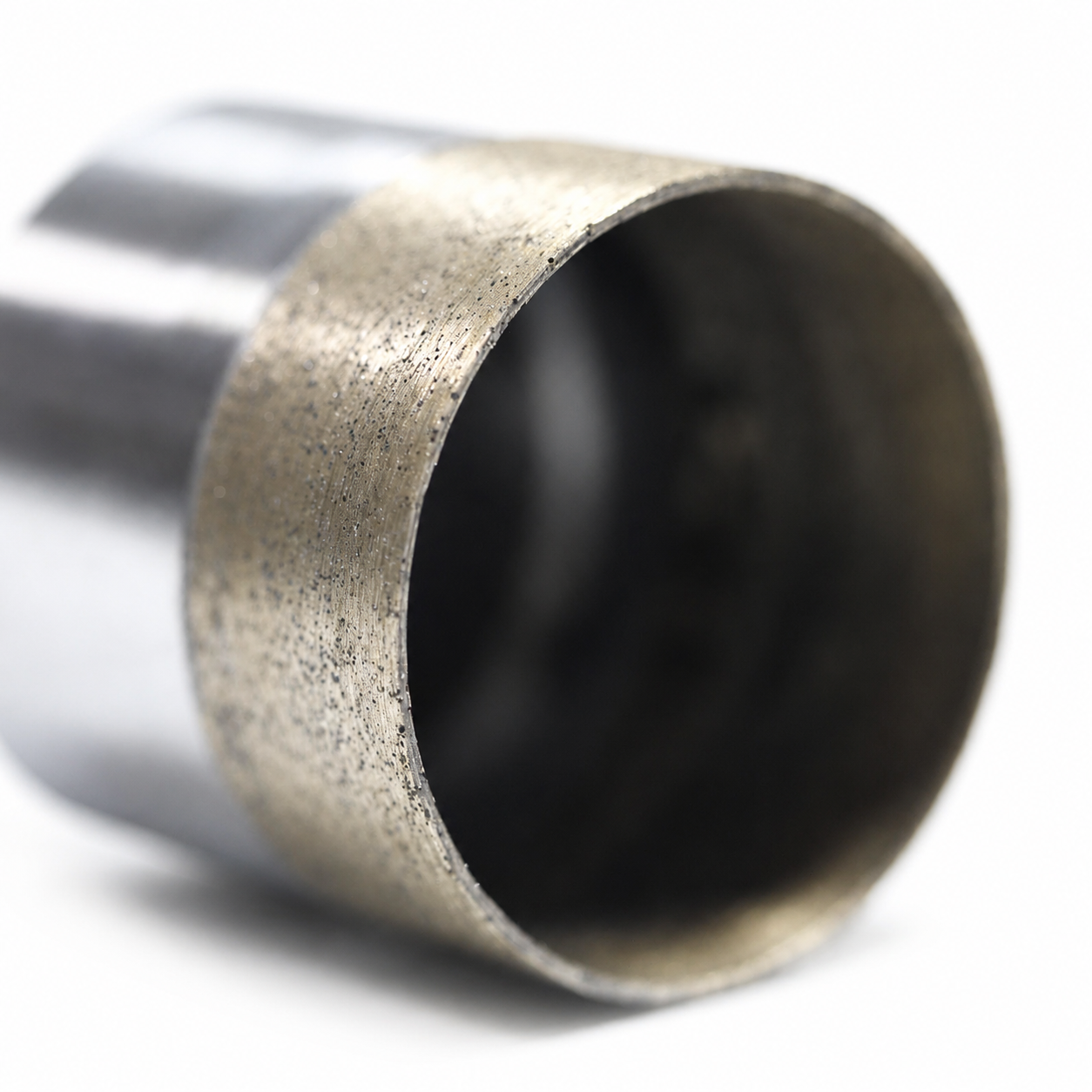

0.95mm Thin Cutting Wall

The approximately 0.95mm cutting wall reduces contact area and drilling resistance, helping the drill bit penetrate hard materials more efficiently.

Sintered Diamond Technology

The sintered diamond cutting section provides a durable working layer suitable for professional wet drilling applications.

Clean Hole Edges

When used with sufficient water and the correct drilling method, the drill bit produces clean holes with reduced chipping around porcelain, ceramic and sintered stone surfaces.

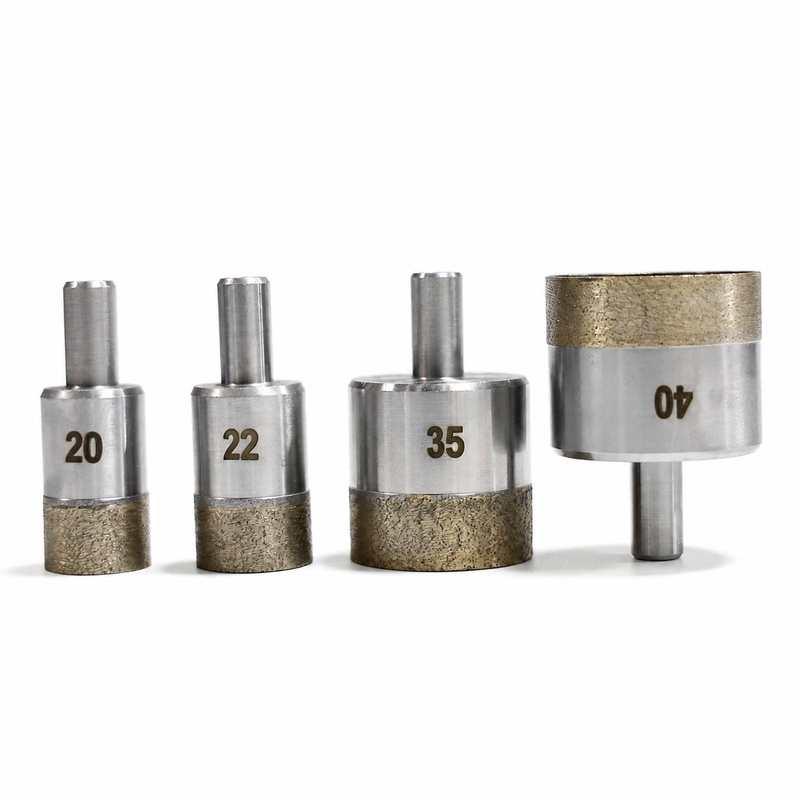

6-150mm Size Range

A broad diameter range makes the series suitable for both small fixing holes and larger plumbing or installation openings.

Professional OEM Supply

Diameter combinations, shank designs, laser marking, private-label packaging and complete drill-bit sets can be developed for distributors, importers and professional tool brands.

How to Use

1. Confirm that the selected drill-bit diameter is suitable for the required hole.

2. Secure the workpiece firmly and mark the center of the drilling position.

3. Install the drill bit securely in the drill chuck.

4. Switch the machine to rotary mode. Do not use hammer or impact mode.

5. Provide continuous water to the cutting area before and during drilling.

6. For freehand drilling, begin with the drill bit at a slight angle to establish the cutting edge. Gradually bring the drill into an upright position after a stable groove has formed.

7. For larger diameters, a drilling guide or template is recommended to prevent the drill bit from moving across the material surface.

8. Apply light and steady pressure. Do not force the drill bit into the material.

9. Use a suitable rotational speed. Larger diameters should normally be operated at a lower speed than smaller diameters.

10. Allow water to remove drilling debris and keep the cutting edge cool throughout the operation.

11. After completing the hole, stop the machine and carefully remove the drill bit.

Important:
Wet drilling only. Do not use hammer mode. Do not operate without sufficient water cooling.

Looking for a reliable wet diamond core drill bit supplier?

Tell us the required diameters, quantities, target materials, preferred shank type and packaging requirements. We can provide individual sizes from 6mm to 150mm, mixed-size sets, laser marking and private-label packaging for distributors and professional tool brands.

Contact us for specifications, samples and wholesale quotations.
