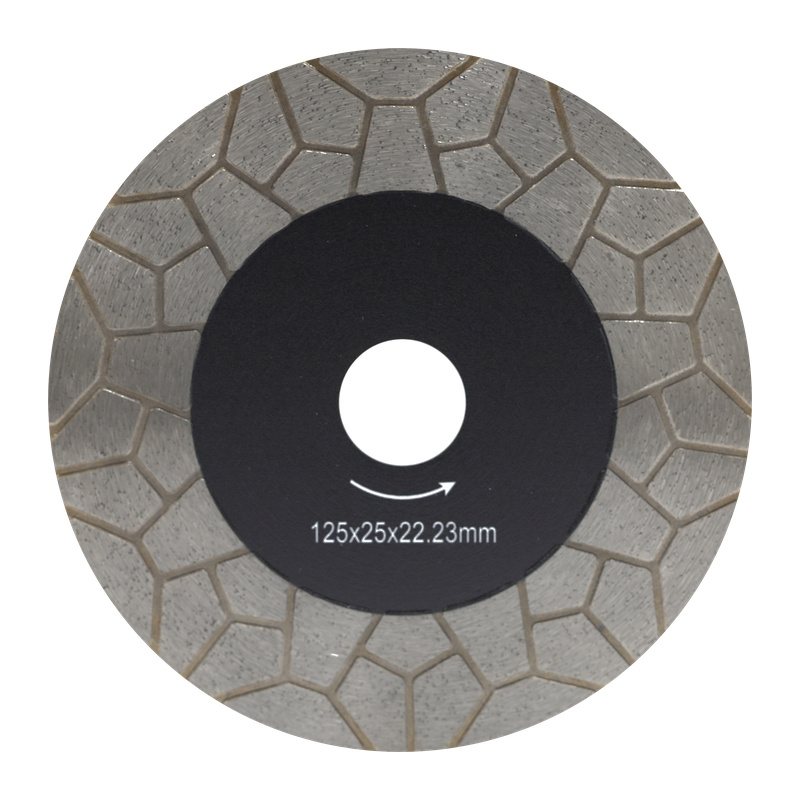

Large Hexagon Diamond Cut and Grind Blade
Model: DSB-115125-S-T-HX
Product Type: Double-sided hot-pressed diamond cutting and grinding blade with large hexagonal cell pattern.
Available Sizes: 115 mm and 125 mm.
Bore: 22.23 mm.
Working Layer Thickness: 1.6 mm.
Working Layer Height: 25 mm.
Blade Shape and Function: Large polygonal diamond cells create broad, rigid contact areas for faster stock removal. The wide channels surrounding each cell improve dust evacuation and cooling, making this pattern well suited to heavier edge correction and 45° bevel preparation.
Applications: Ceramic tile, porcelain, gres, Dekton-type sintered stone, marble, quartz and engineered stone.
Recommended Operations: Straight cutting, 45° mitre cutting, chamfering, rapid edge shaping and corrective grinding with a compatible angle grinder. Suitable for dry or wet operation.
Advantages:
• Large diamond cells for aggressive material removal
• Open channels for dust evacuation and cooling
• Strong support during beveling and edge shaping
• 1.6 mm thickness and 25 mm working height
• Available in 115 mm and 125 mm
Confirm maximum RPM and machine compatibility before use.
Specify Your Cutting and Edge-Finishing Task
Choose 115 mm or 125 mm and confirm the listed 22.23 mm bore against your machine. Tell us whether your main task is straight cutting, 45-degree mitre preparation, chamfering or edge correction. Include the material and thickness so we can discuss the appropriate configuration for your work.
Request Large Hexagon Blade Pricing and Samples
Reference model: DSB-115125-S-T-HX.
Blade diameter and quantity per size.
Tile or slab material, thickness and required edge profile.
Machine model, operating speed and wet or dry setup.
Sample quantity, destination country and packaging requirements.
For beveling or corrective grinding, a photo or drawing of the required edge can help clarify the task. If you are evaluating samples, describe your current tool and the finish or material-removal result you want to improve. Include logo and packaging requirements for private-label enquiries.
