| Quantity: | |
|---|---|
ZSDBT001
ZHUOSHI
8202391000
Application: | For cutting Porcelain, Granite, Marble, Brick, Dekton, Quartz etc. |
Feature: | Fast cutting, no chipping |
Working condition: | Both dry and wet |
Segment type | Turbo rim such as X turbo, A turbo, R turbo, K turbo, and different types can be customized if the quantity can meet over 1000pcs each size |
Diameter: | 75-350mm |
Machinery: | Angle grinder, Pneumatic grinder, marble cutter, portable tile cutter, table saw |
Color: | Can be customized with a Pantone code or RAL code |
Package: | Carton box, Blister, and customized package is available with a MOQ request. |
Sizes available:
Diameter | Segment Thickness | Segment Height | Hole Size | RPM |
75mm(3”) | 1.2mm | 10mm | 10/16/20/22.23/25.4/30/50/60mm | |
100mm(4”) | 1.2mm | |||
115mm(4.5”) | 1.2/1.4mm | 13,300 | ||
125mm(5”) | 1.2/1.4mm | 12,200 | ||
150mm(6”) | 1.4mm | |||
180mm(7”) | 1.4mm | 8,500 | ||
200mm(8”) | 1.6mm | |||
230mm(9”) | 1.8mm | 6,640 | ||
250mm(10”) | 1.8mm | |||
300mm(12”) | 2.0mm | 6,200 | ||
350mm(14”) | 2.2mm | 4,300 |

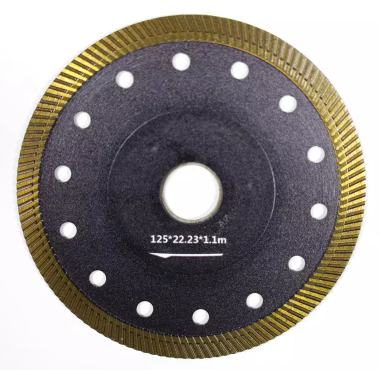

ZSDBT001 is designed for cutting hard surfaces such as porcelain tile, Dekton, granite, marble, brick, and quartz. It features a turbo rim available in X, A, R, and K styles, and supports both dry and wet cutting. Diameters range from 75 mm to 350 mm, with options for premium, medium, and standard grades. The blade is hot-pressed for durability and consistent cutting.
Always use cutting machines compatible with the blade diameter (75mm - 350mm), such as angle grinders, pneumatic polishers, marble cutters, portable tile cutters, and table saws.
Ensure the cutting machine is fitted with an appropriate safety guard.
Install the ZHOUSHI Diamond Saw Blade (Model: ZSDBT001) securely, tightening the locking nut firmly.
Check that the blade is properly aligned and firmly mounted before starting the machine.
Always wear appropriate personal protective equipment (PPE), including safety goggles, gloves, ear protection, and dust masks.
Avoid wearing loose clothing or accessories that could become entangled during operation.
Allow the blade to cut naturally without applying excessive force.
Avoid curve cutting to prevent damage to the blade and maintain straight cutting lines.
Maintain a steady and consistent cutting motion for optimal results, especially on porcelain, Dekton, granite, marble, brick, and quartz materials.
Inspect the blade before each use for cracks, deformation, or significant wear.
If the blade shows signs of dullness, recondition it using appropriate sharpening tools.
Select the correct quality grade (High, Medium, Standard) according to your project’s demands for the best balance between cost and performance.
The blade supports both dry and wet cutting; wet cutting is recommended to minimize heat generation and extend blade life.
During long cutting operations, ensure sufficient cooling to maintain performance.
The blade is designed to withstand dry and wet cutting cycles without compromising its edge quality or cutting life.
Choose the appropriate turbo rim design according to cutting needs:
X Type: Prioritizes cutting speed.
R Type: Balances speed and stability.
K Type: Achieves a smoother surface finish.
Customization for color (Pantone/RAL) and packaging (paper box or blister pack) is available based on minimum order quantities.
Following these guidelines will help you maximize the cutting performance, safety, and service life of your ZHOUSHI Fast Speed Super Thin Turbo Diamond Saw Blade.
