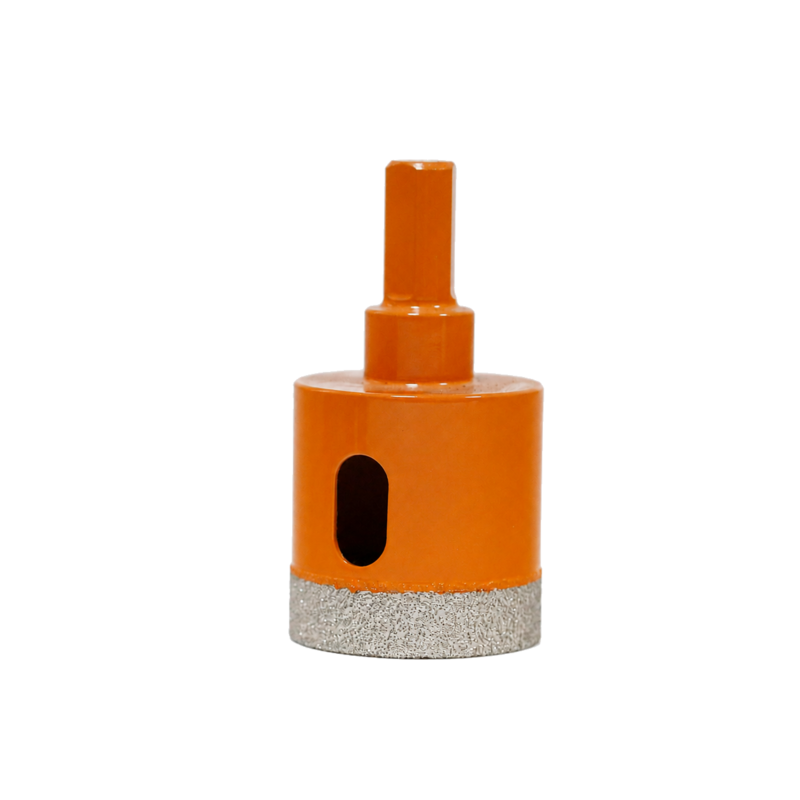

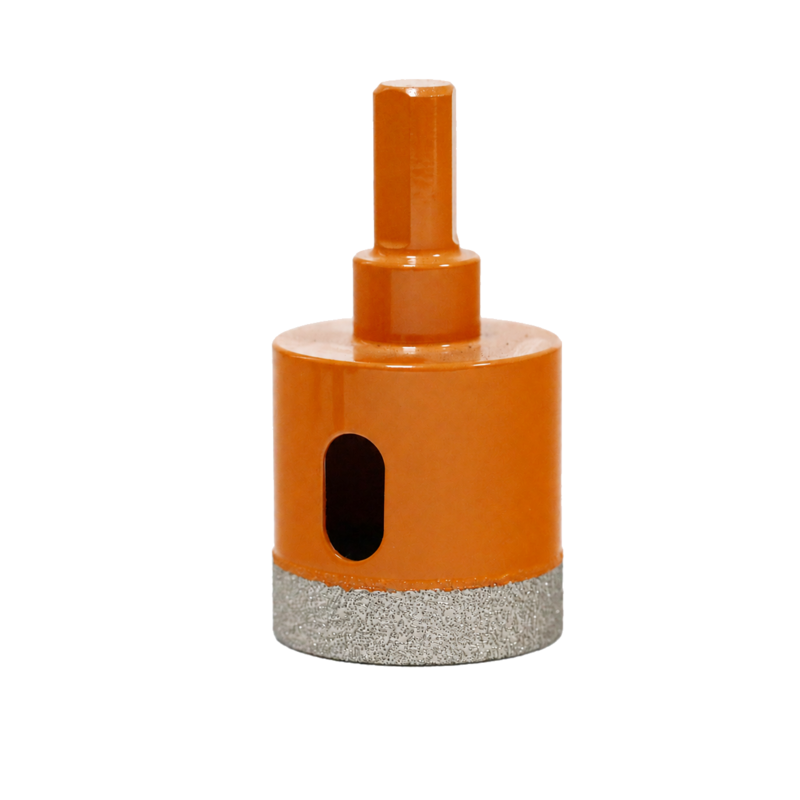

Product Model: ZSVB-H4-130
Size Range and Connection
• Available diameters: 4–130 mm
• Hex shank for secure clamping in compatible electric and cordless drills
• Custom shank and size combinations available on request
Key Features
• Vacuum brazed diamond cutting edge provides efficient drilling and strong diamond retention
• Hex shank helps reduce slipping in the drill chuck
• Side clearance opening supports cooling, debris discharge and core removal
• Suitable for wet or dry drilling according to the material and diameter
• Wide size range covers fixing holes, pipe openings and installation work
Applications
For porcelain tile, ceramic tile, gres, granite, marble, engineered stone and similar hard materials. Establish the cut at a slight angle and use controlled orbital movement. Water cooling is recommended when conditions allow, especially for larger diameters.
OEM / ODM
Color, logo, size marking, shank type, packaging and kit configuration can be customized.
